Diagram 608/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

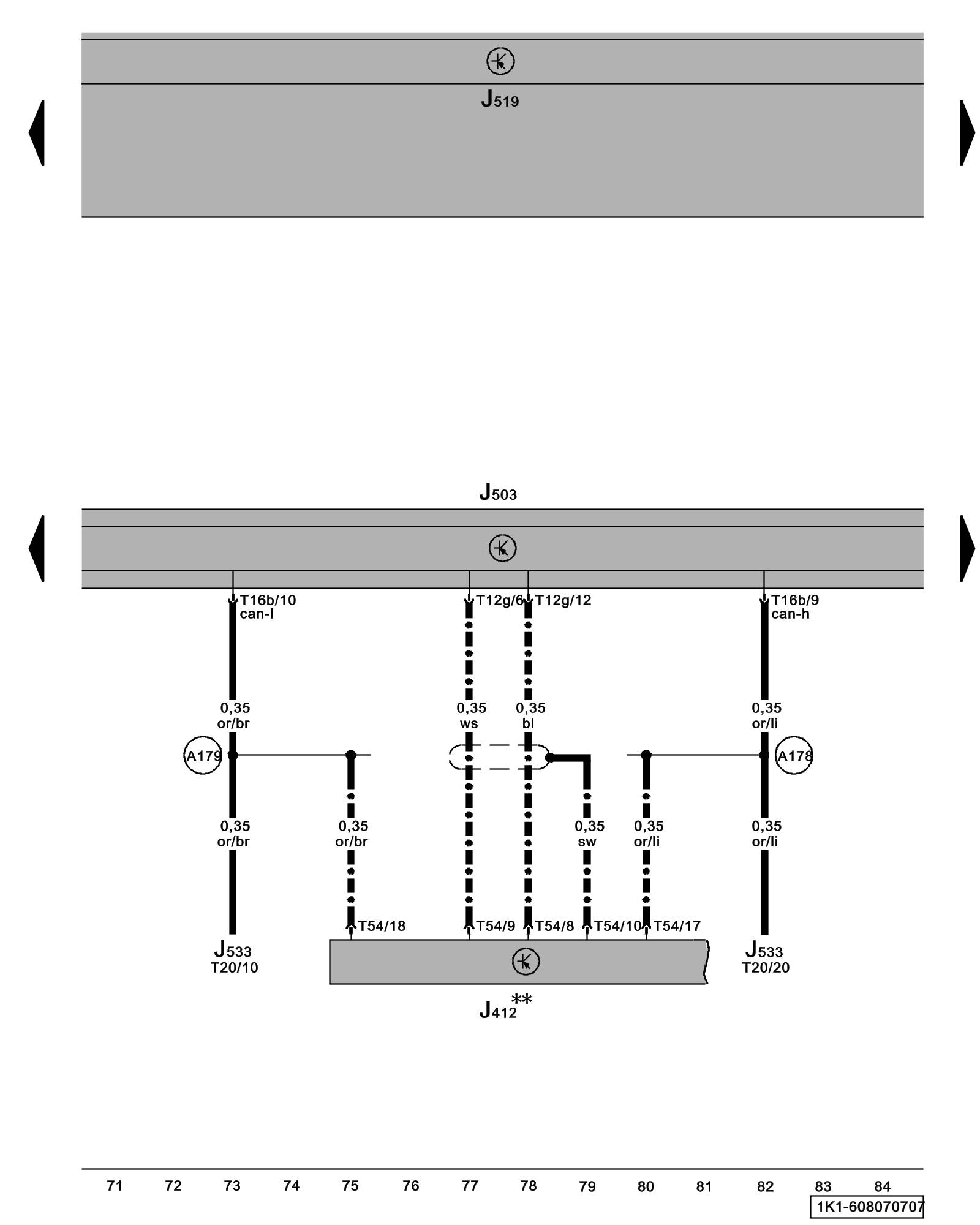

Radio/Navigation Display Control Module, Operating Electronics and Telephone Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module Radio / Navigation And Antenna Systems Overview

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface

T12g - 12-Pin Connector

T16b - 16-Pin Connector

T20 - 20-Pin Connector

T54 - 54-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

** - Components not available on system preparation

_ . _ . _ - Only models with telephone/ telephone preparation

Previous Diagram 608/6 (Tracks 57-70)

Next Diagram 608/8 (Tracks 85-98)
