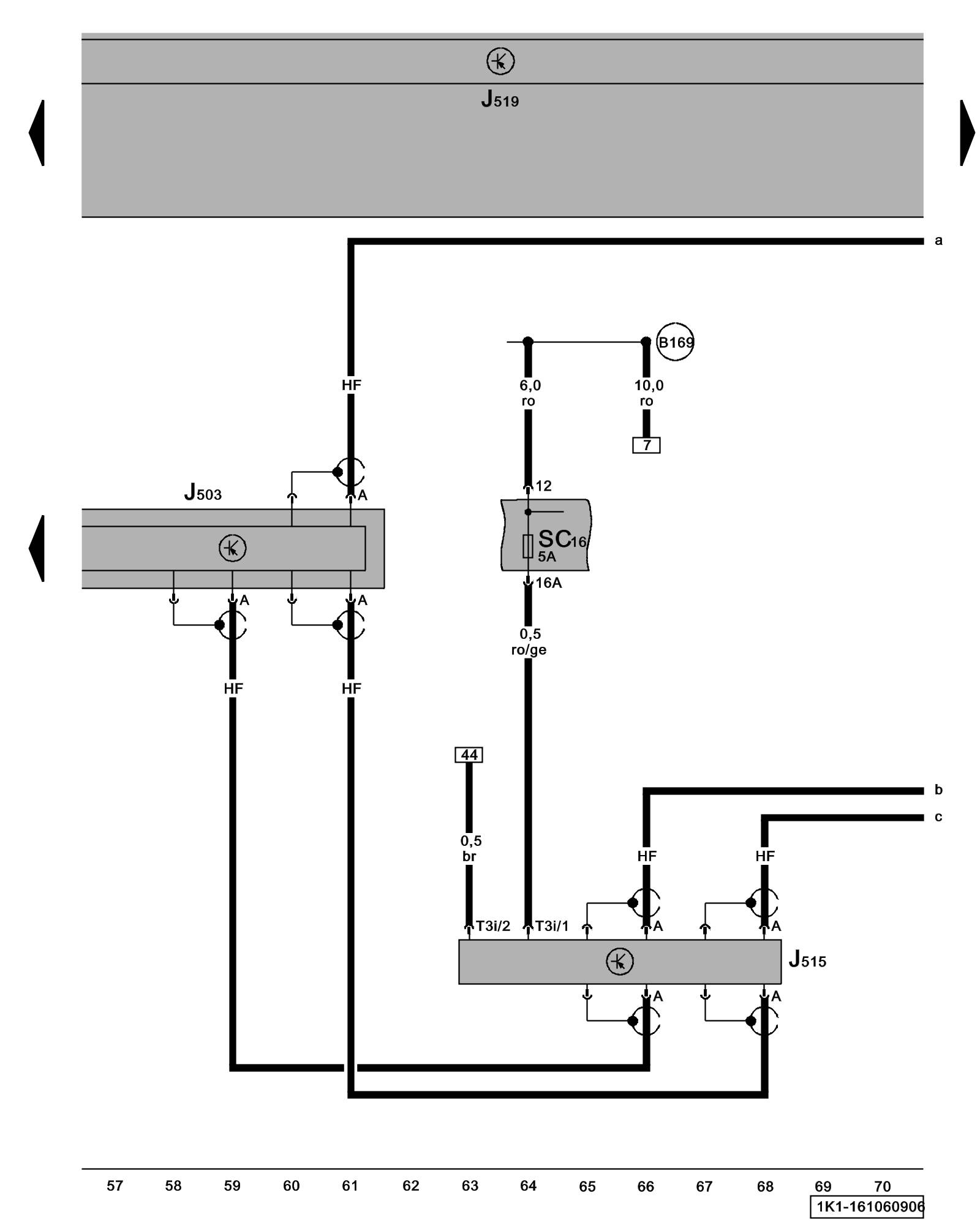

Diagram 161/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Antenna Selection Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J515 - Antenna Selection Control Module, below front passenger's seat Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

SC16 - Fuse 16 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

T3i - 3-Pin Connector

(B169) - Plus Connection 1 (30) (in interior wiring harness)
