Diagram 143/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

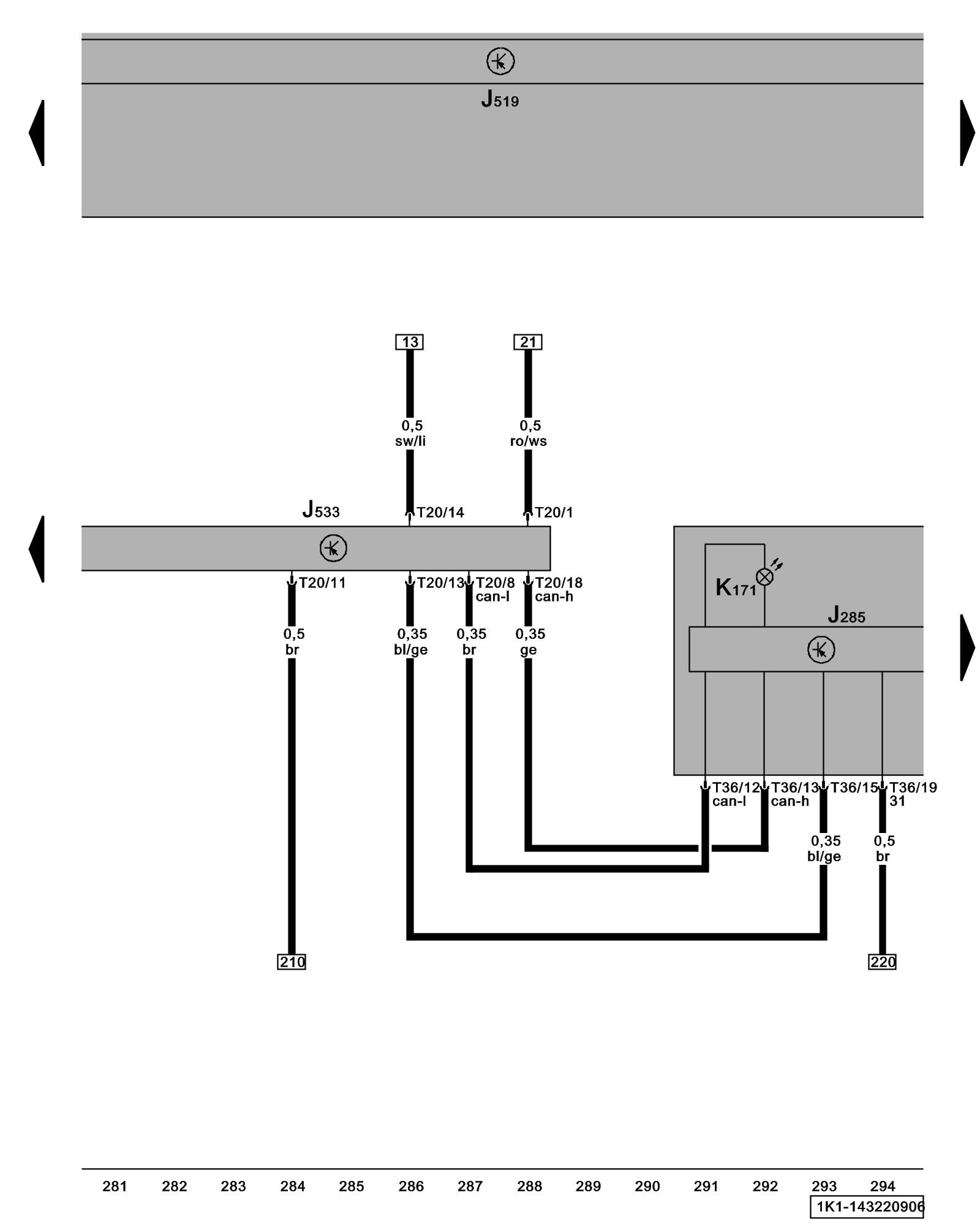

Data Bus On Board Diagnostic Interface, Instrument Cluster, Front Hood Open Warning Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module

J519 - Vehicle Electrical System Control Module

J533 - Data Bus On Board Diagnostic Interface, in left footwell, near center console

K171 - Front Hood Open Warning Lamp

T20 - 20-Pin Connector

T36 - 36-Pin Connector

Previous Diagram 143/21 (Tracks 267-280)

Next Diagram 143/23 (Tracks 295-308)
