Instrument Panel Side Covers



Instrument Panel Side Covers

Removing

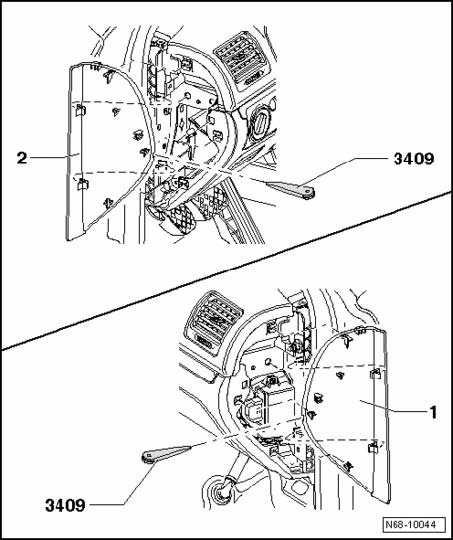

- Using trim removal wedge 3409 , pry right side instrument panel cover - 1 - out of locking mechanisms.







- Using trim removal wedge 3409 , pry left side instrument panel cover - 2 - out of locking mechanisms.







Installing

- Installation is performed in the reverse order of removal.
