Individual Emblem Dimensions

Individual Emblem Dimensions

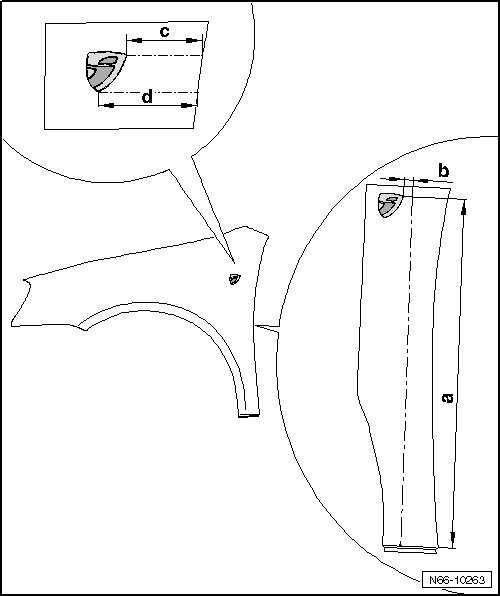

Left Fender Individual Emblem Dimensions





1 Dimension - a - = 551 mm

• Transfer - dimension a - from the bottom edge of the fender to the fender.

2 Dimension - b - = 14 mm

• Transfer - dimension b - from the end of dimension a out to the corner of the emblem.

3 Dimension - c - = 70 mm

• Check the distance between the upper edge of the emblem to the edge of the fender with - dimension c -.

4 Dimension - d - = 92 mm

• Check the distance between the lower edge of the emblem to the edge of the fender with - dimension d -.

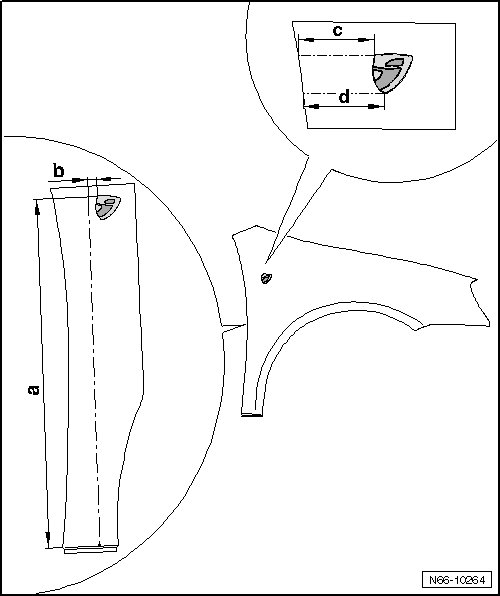

Right Fender Individual Emblem Dimensions





1 Dimension - a - = 550 mm

• Transfer - dimension a - from the bottom edge of the fender to the fender.

2 Dimension - b - = 30 mm

• Transfer - dimension b - from the end of dimension a out to the corner of the emblem.

3 Dimension - c - = 86 mm

• Check the distance between the upper edge of the emblem to the edge of the fender with - dimension c -.

4 Dimension - d - = 92 mm

• Check the distance between the lower edge of the emblem to the edge of the fender with - dimension d -.
