Steering Column Assembly Overview
Steering Column Assembly Overview
• Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.
• Always replace self-locking nuts.
• Always replace corroded bolts/nuts.

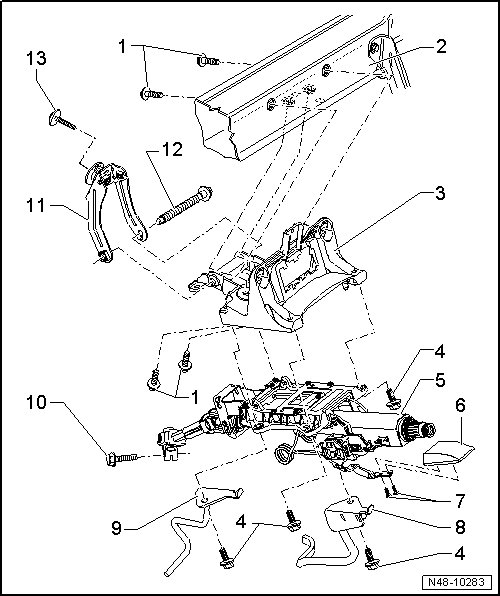

1 Bolt
• 20 Nm
2 Lateral Control Arm for Steering Column
3 Mounting Bracket
• Removing and installing, refer to => [ Mounting Bracket ] Mounting Bracket
4 Bolt
• Always replace after removal
• 20 Nm
5 Steering Column
• Removing and installing, refer to => [ Steering Column ] Steering Column
6 Handle Plate
7 Bolt
• 3 Nm
8 Brake Pedal Crash Brace
9 Clutch Pedal Crash Brace
10 Bolt
• Always replace after removal
• 30 Nm
11 Strut
• Removing and installing, refer to => [ Strut ] Strut
12 Bolt
• 20 Nm
13 Bolt
• 20 Nm
