Jump Start Point Overview, Through 04.05

Jump Start Point Overview, Through 04.05

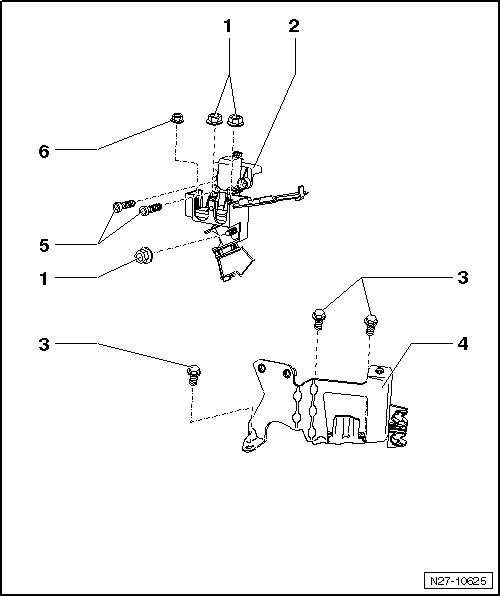

The external starting point is in the left of the engine compartment near the left bulkhead.






1 - Collar Nut

• 20 Nm

• M8

2 - External Starting Point Housing

3 - Collar Bolt

• 8 Nm

• M6

4 - Hydraulic Oil Reservoir And External Starting Point Bracket

5 - Socket Head Bolt

• 8 Nm

• M6 x 15

6 - Collar Nut

• 10 Nm

• M6
