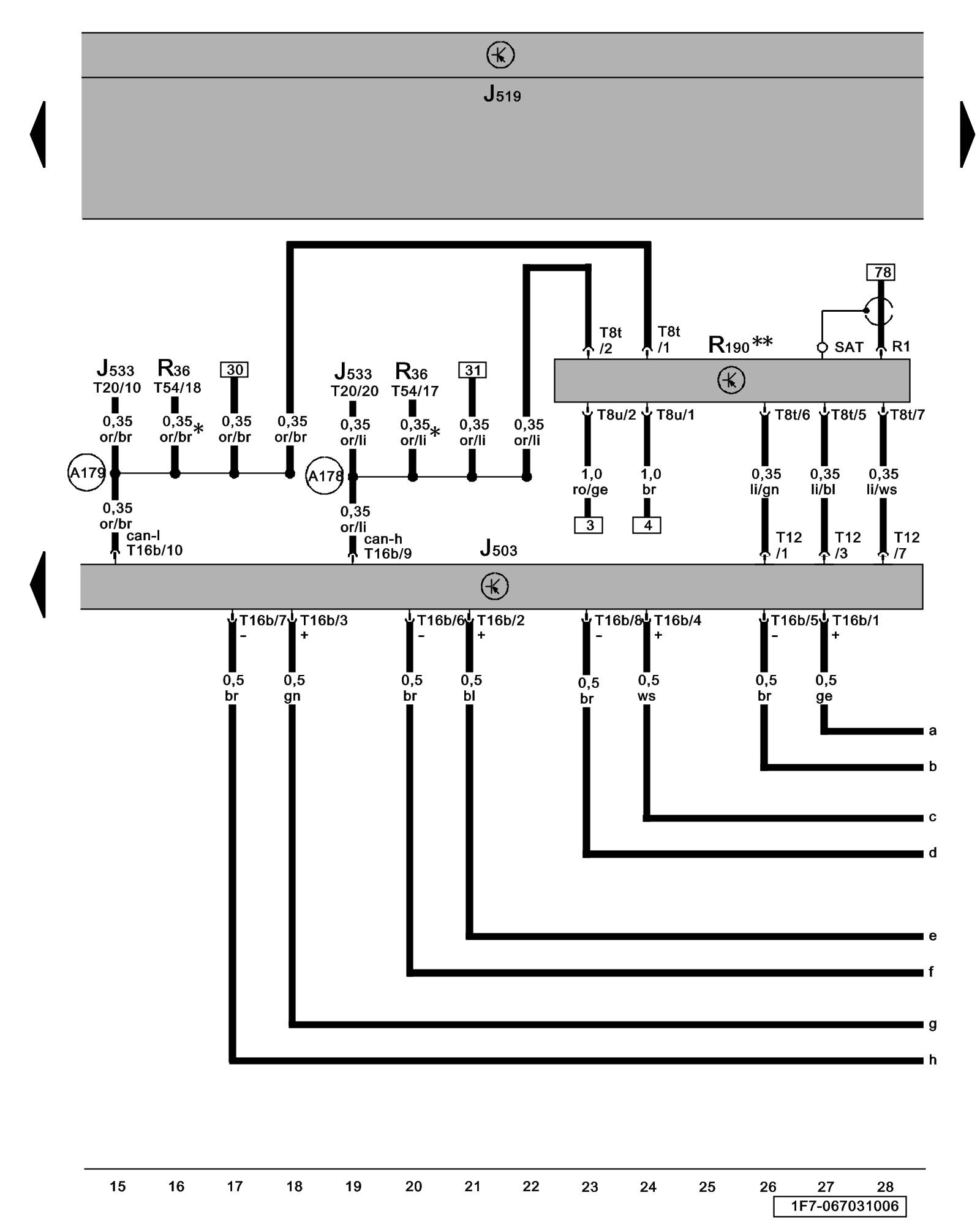

Diagram 67/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Digital Satellite Radio Tuner





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Locations

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J533 - Data Bus On Board Diagnostic Interface Overview of Control Modules

R36 - Telephone Transceiver Overview of Control Modules

R190 - Digital Satellite Radio Tuner Locations

T8t - 8-Pin Connector

T8u - 8-Pin Connector

T12 - 12-Pin Connector

T16b - 16-Pin Connector

T20 - 20-Pin Connector

T54 - 54-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

* - Only models with cellular telephone or cellular telephone preparation

** - Only models with Satellite Radio Tuner
