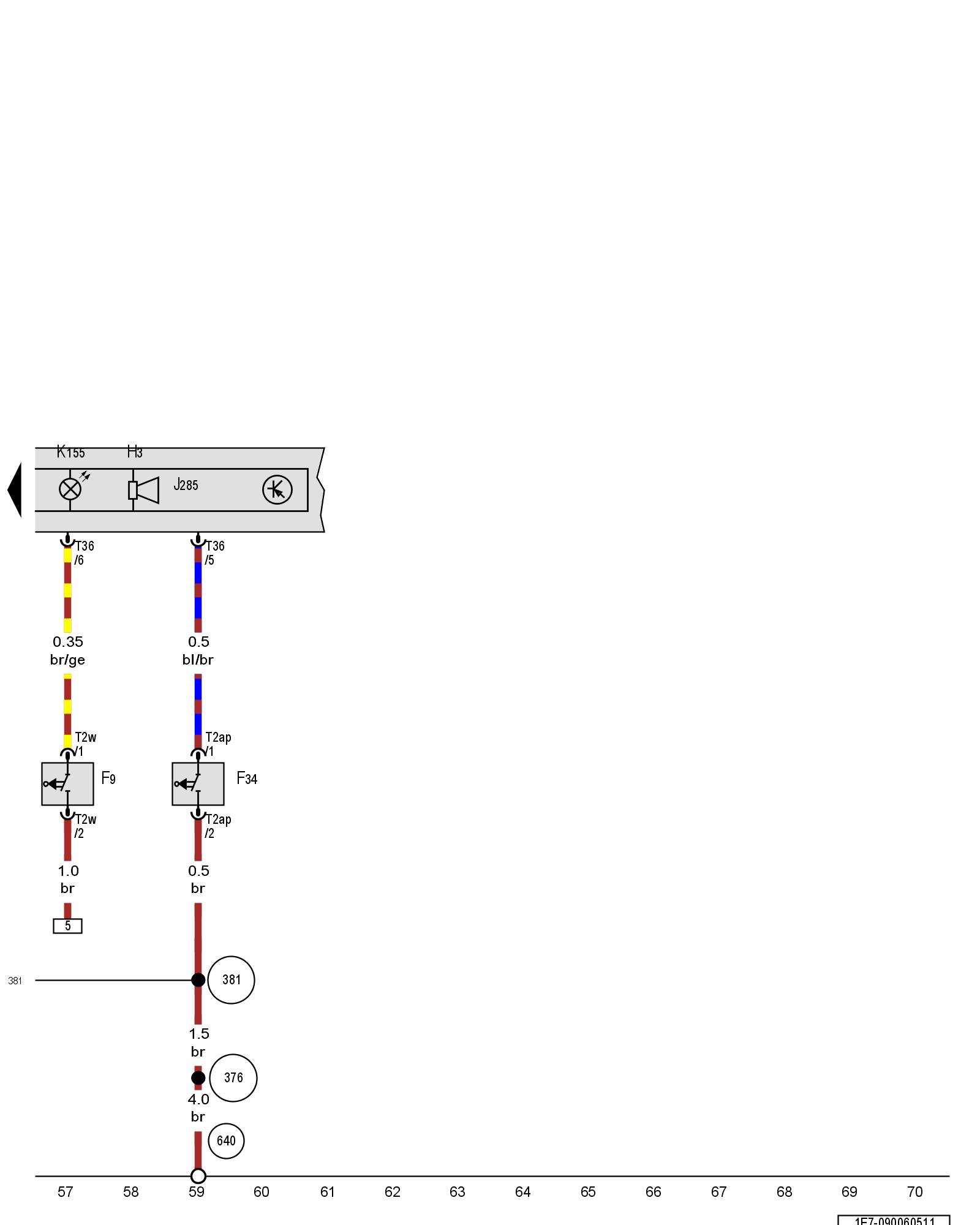

Diagram 90/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Parking brake indicator lamp switch, Brake fluid level warning switch, Instrument cluster control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F9 - Parking brake indicator lamp switch Anti-lock Brake System with EDL/ASR/ESP

F34 - Brake fluid level warning switch

H3 - Warning buzzer and tone

J285 - Instrument cluster control module Overview of Control Modules

K155 - ASR/ESP indicator lamp

T2ap - Double connector

T2w - Double connector

T36 - 36-pin connector

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(640) - Ground connection 2 in engine compartment, left Overview of Ground Connections in Engine Compartment
