Rear HVAC Control Panel Overview, Automatic Dual Zone

Rear HVAC Control Panel Overview, Automatic Dual Zone

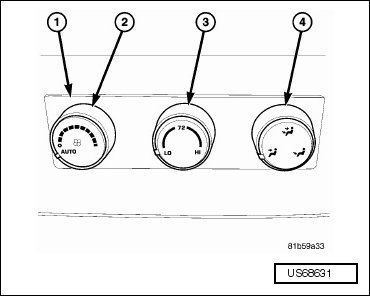

The rear ATC HVAC control is located in the rear overhead console and allows intermediate seat passengers to adjust rear air distribution, temperature and blower motor speed when the rear HVAC system primary on/off control in the front HVAC control in the instrument panel is set to the on position and the rear HVAC controls are not locked out by the driver and front seat passenger.






1 Rear HVAC control

• The rear HVAC control is a slave potentiometer to the front HVAC control. See rear HVAC control in this group for more information. Refer to => [ Rear HVAC Control ] Rear HVAC Control.

• The rear HVAC control cannot be repaired and must be replaced if inoperative or damaged.

2 Fan speed selection

• Rotary control knob for fan speed selection and turning the rear HVAC system off or to auto mode.

3 Temperature control

• Rotary control knob for temperature control of the rear discharged air.

4 Mode control

• Rotary control knob for mode control of the rear discharged air.
