Emission Control Systems: Specifications

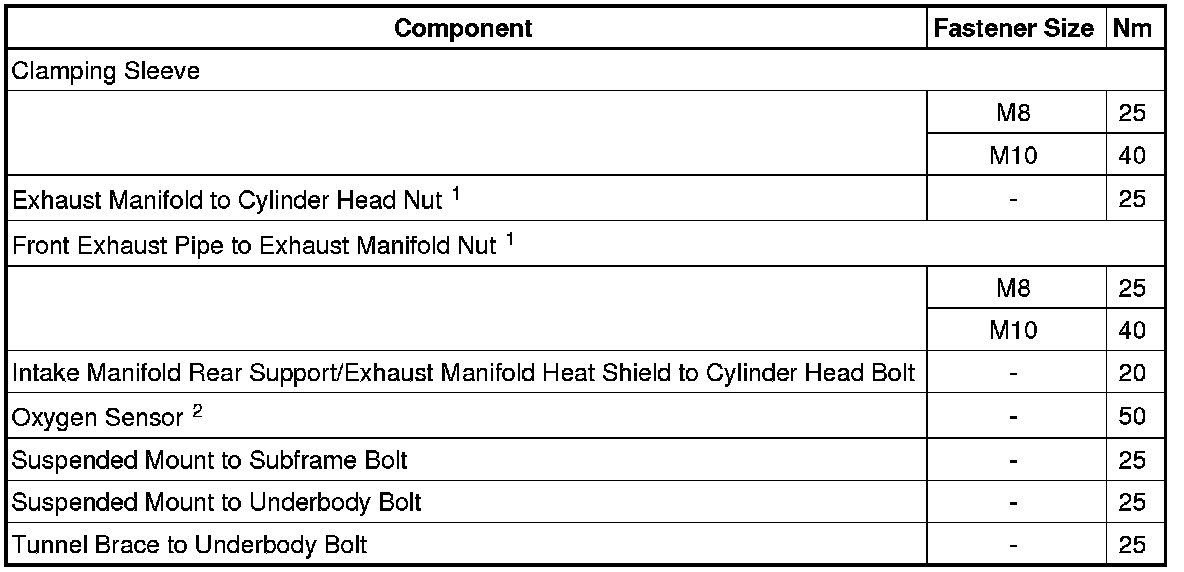

Fastener Tightening Specifications

• 1 Always replace

• 2 When reusing an oxygen sensor, only use hot bolt paste (G 052 112 A3) on the threads. Do not let the paste get onto the slits of the oxygen sensor body.
