09M,09MA Automatic Transmission

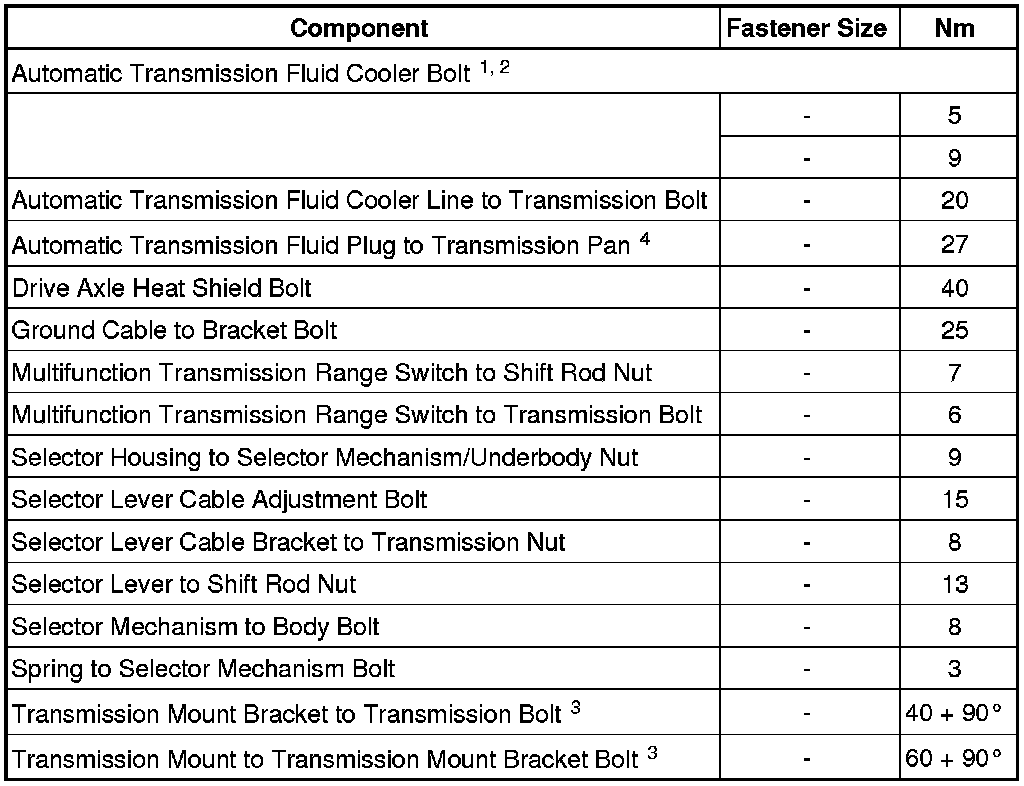

Fastener Tightening Specifications






• 1 Passat only

• 2 For bolt clarification, refer to => [ Transmission Fluid Cooler Overview ] Description and Operation.

• 3 Always replace

• 4 Install with a new seal

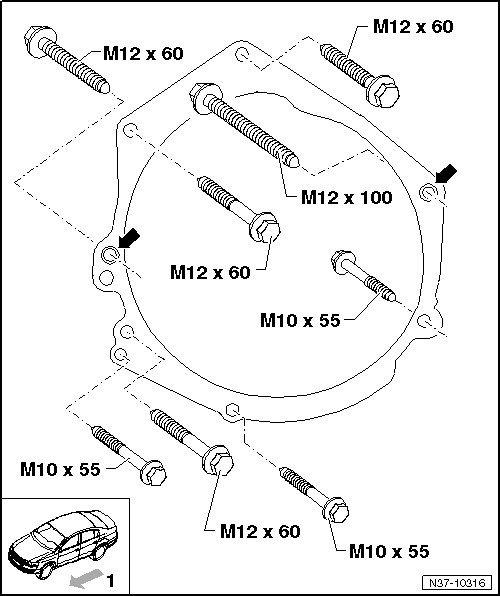

Transmission to Engine Bolt Tightening Specifications






1 - Driving Direction

- Drive Plate to Torque Converter

• 60 Nm

• Quantity 6

• Remove and install using the socket SW 15 (V/175)

- M12 Bolts

• 80 Nm

- M10 Bolts

• 40 Nm

• These bolts are located at the bottom of the flange.

Arrows - Alignment Sleeves
