Intake Manifold

Upper Intake Manifold





Mount the upper intake manifold onto the lower intake manifold
Tighten the bolts - 1 through 5 - that connect the upper intake manifold to the lower intake manifold starting from the inside and working toward the outside

Tightening specification 10 Nm

Lower Intake Manifold, with Fuel Rail
Install the lower intake manifold with new seals
Place the fuel rail on and press it evenly onto the fuel injectors
Install all the bolts for the intake manifold and fuel rail by hand

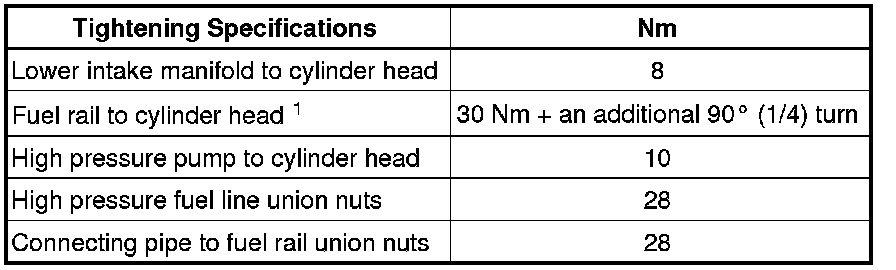

First, evenly tighten the new fuel rail to cylinder head bolts working from the inside to the outside
Tighten the bolts that connect the lower intake manifold to the cylinder head





1 always replace
