Exhaust Manifold

Exhaust Manifold
Replace gaskets and self locking nuts

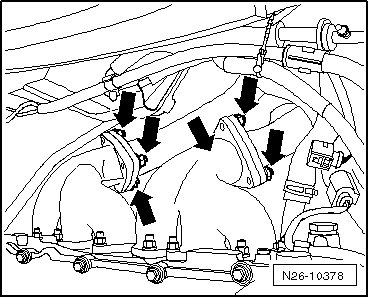

Install the upper and lower nuts - arrows - on both exhaust manifolds

Install front exhaust pipes to exhaust manifolds nuts - arrows -

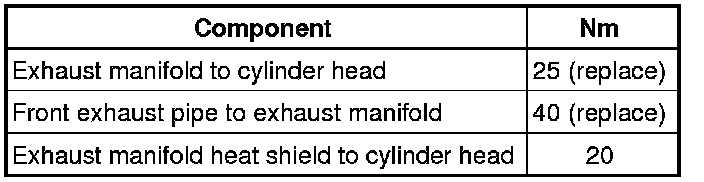

Tightening Specifications
