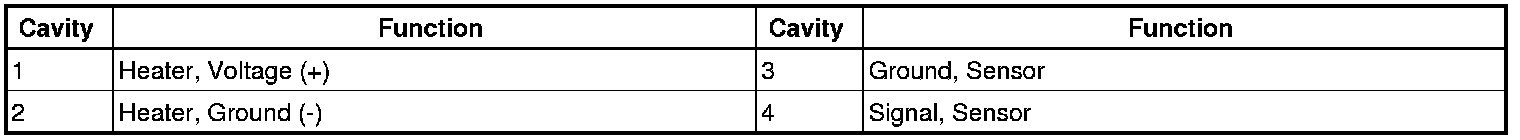

Oxygen Sensor in Bank 1 Center Three way Catalytic Converter -G465-






Engine Management System - Connector Views

Oxygen sensor in bank 1 center three way catalytic converter -G465-



Gas engines
