Diagram 101/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

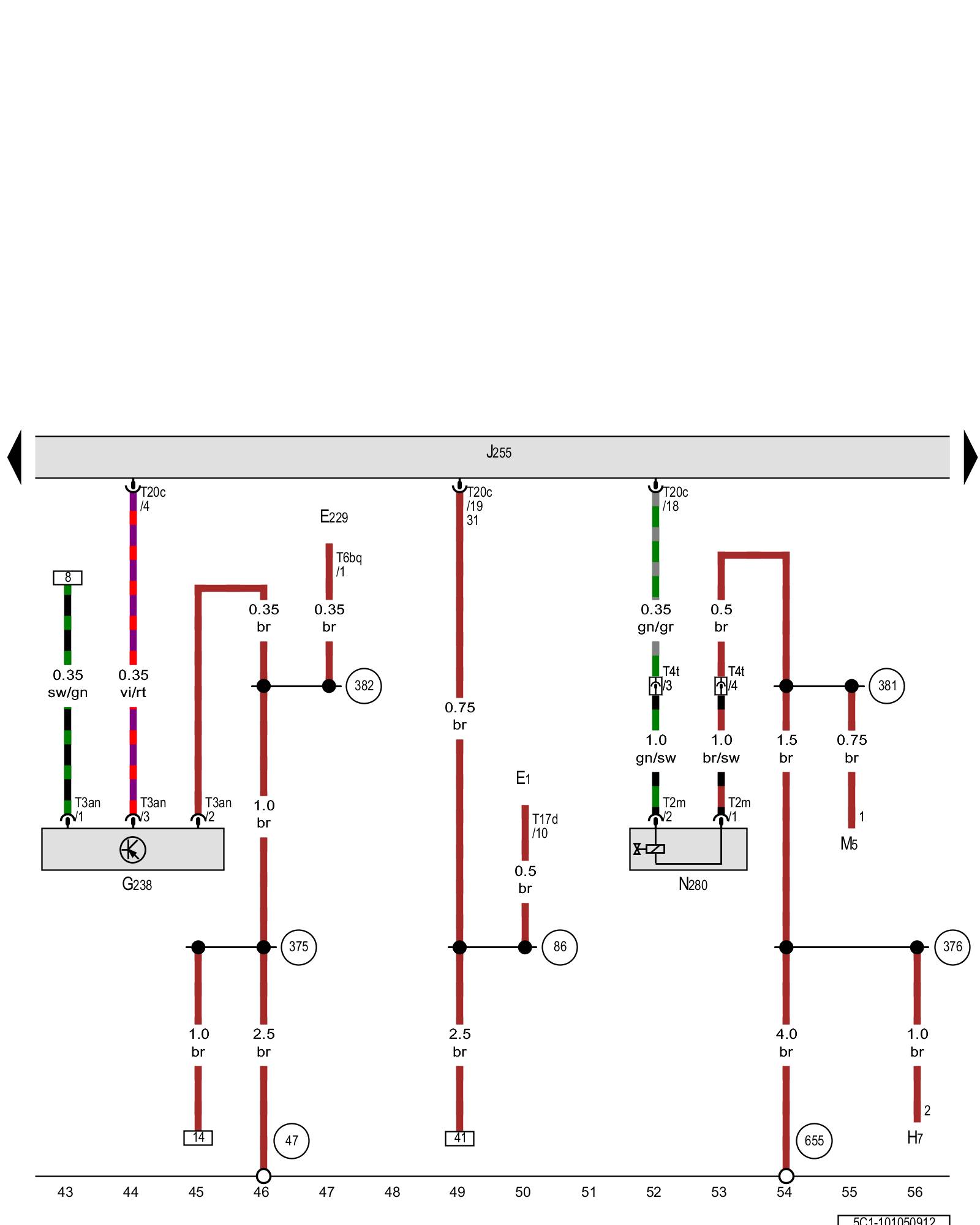

Air quality sensor, Climatronic control module, A/C compressor regulator valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E229 - Emergency flasher switch

G238 - Air quality sensor Climatronic System Component Overview Diagrams

H7 - Low tone horn Locations

J255 - Climatronic control module Climatronic System Component Overview Climatronic (Automatic Climate Control) Control Module -J255-

M5 - Left front turn signal bulb

N280 - A/C compressor regulator valve Climatronic System Component Overview [1][2]Diagrams

T2m - Double connector

T3an - 3-pin connector

T4t - 4-pin connector

T6bq - 6-pin connector

T17d - 17-pin connector

T20c - 20-pin connector

(47) - Ground connection in right front footwell Locations

(86) - Ground connection 1 (in rear wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(655) - Ground connection on left headlamp Locations

Previous Diagram 101/4 (Tracks 29-42)

Next Diagram 101/6 (Tracks 57-70)
