Wheel Alignment Overview






Wheel Alignment Overview

Special tools, testers and auxiliary items required

Brake pedal actuator (V.A.G 1869/2)

Observe the following work sequence!

- Pay attention to notes on wheel alignment device

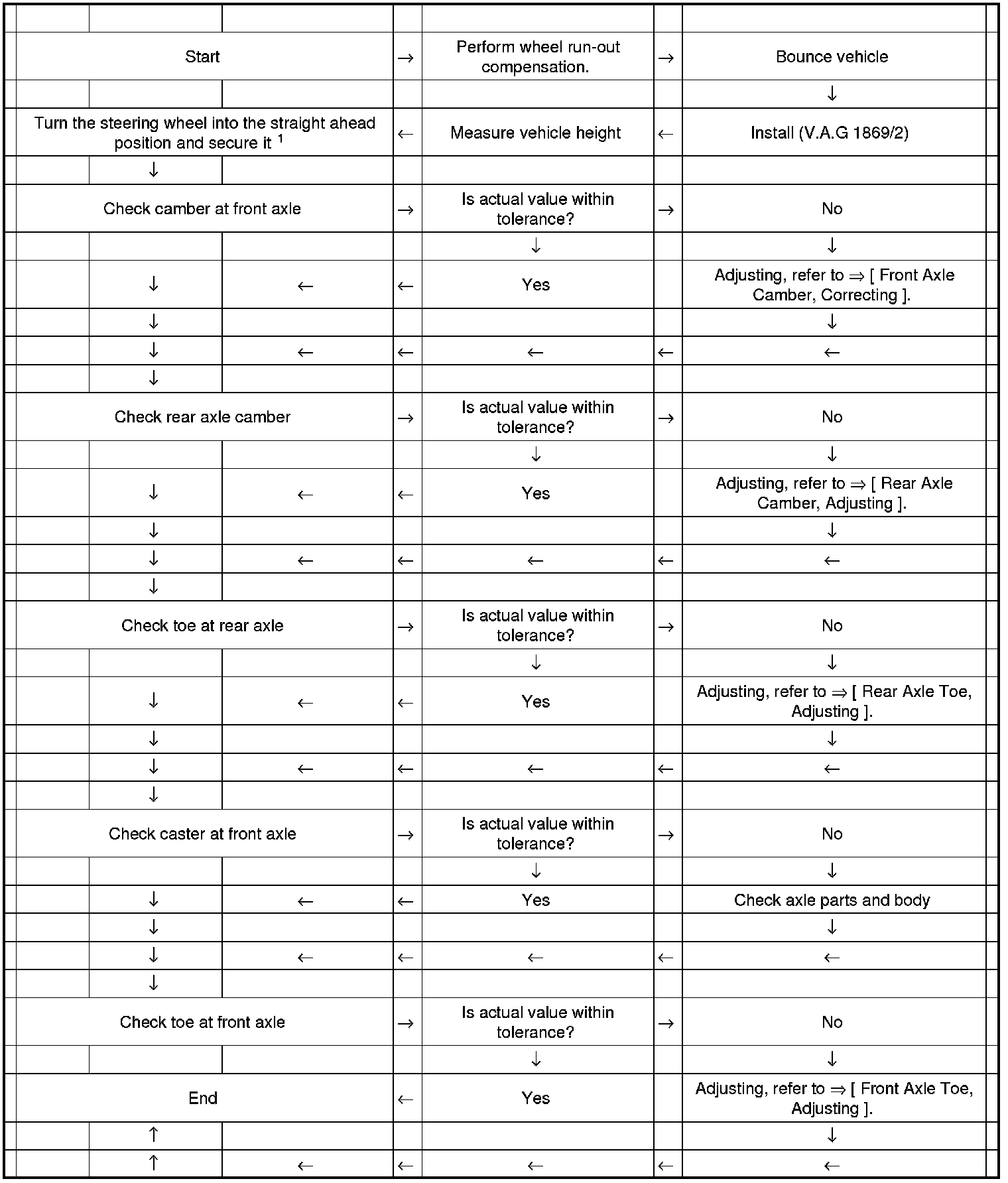

Measuring Procedure






1 If steering wheel is crooked at end of alignment procedure, it must be straightened. Then perform basic setting for Steering Angle Sensor (G85) using Vehicle Diagnostic Tester.
