Alignment: Specifications

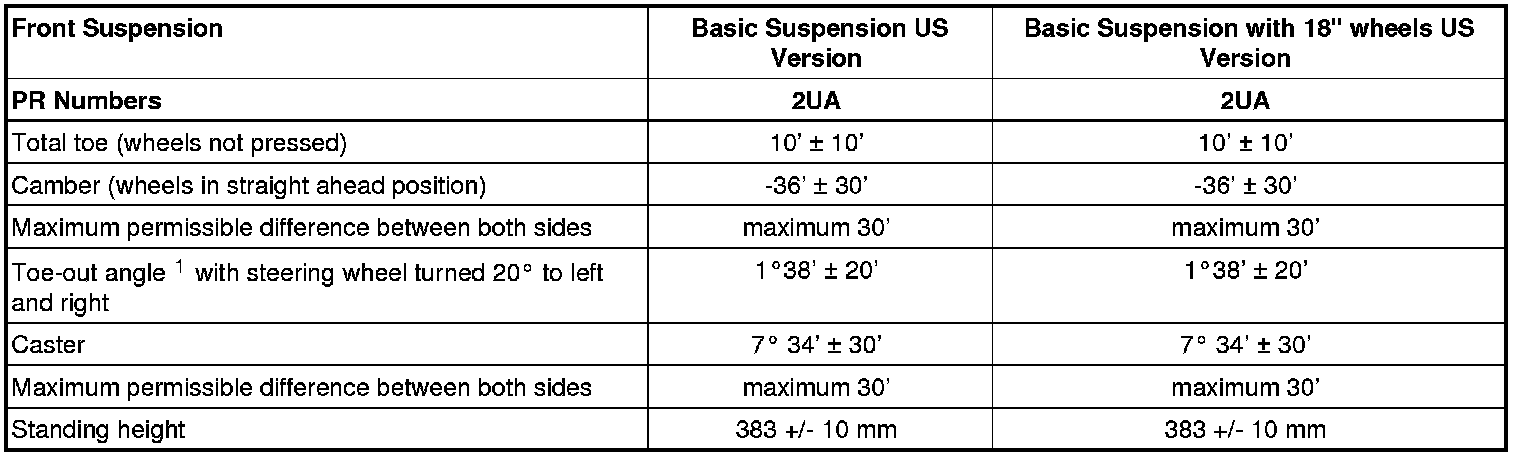

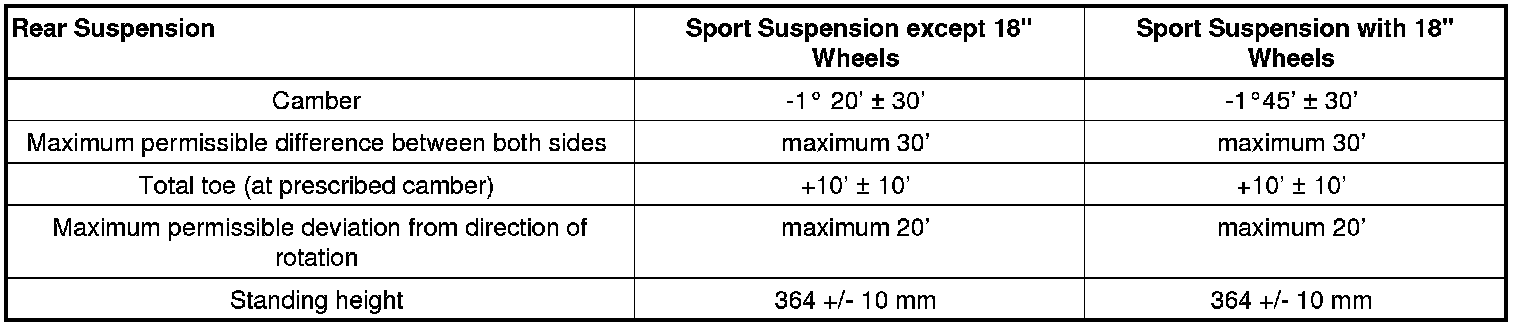

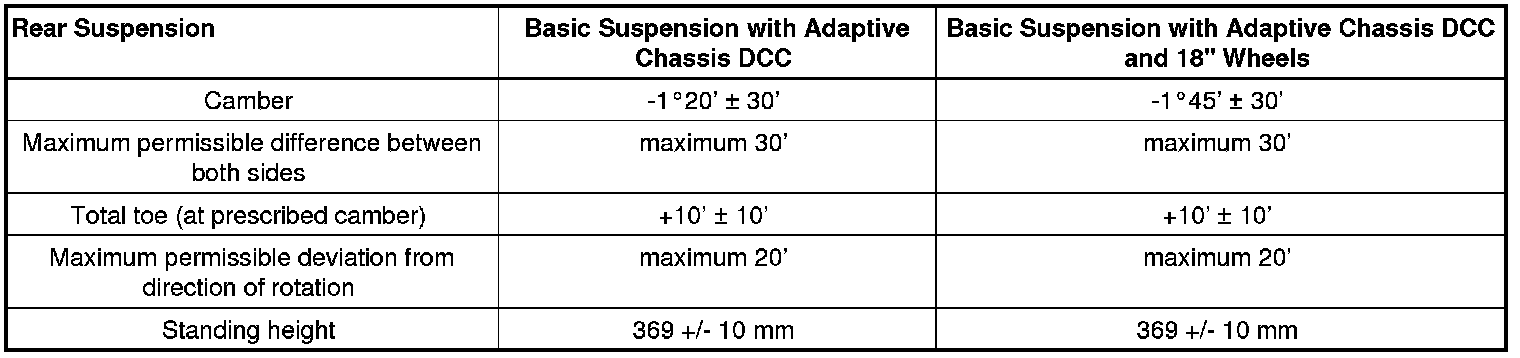

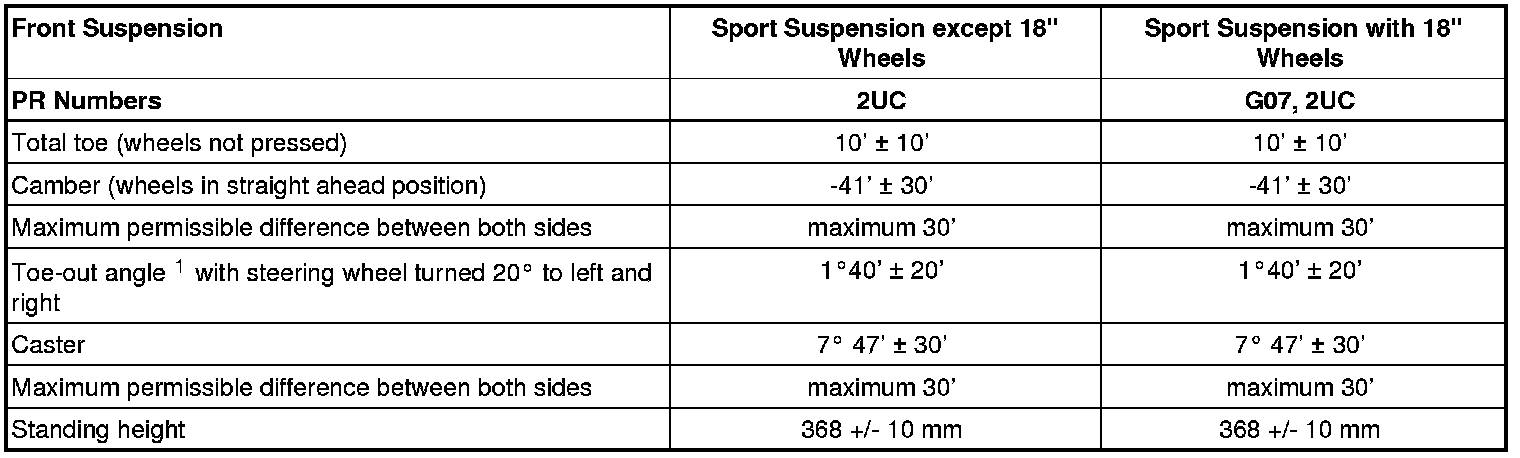

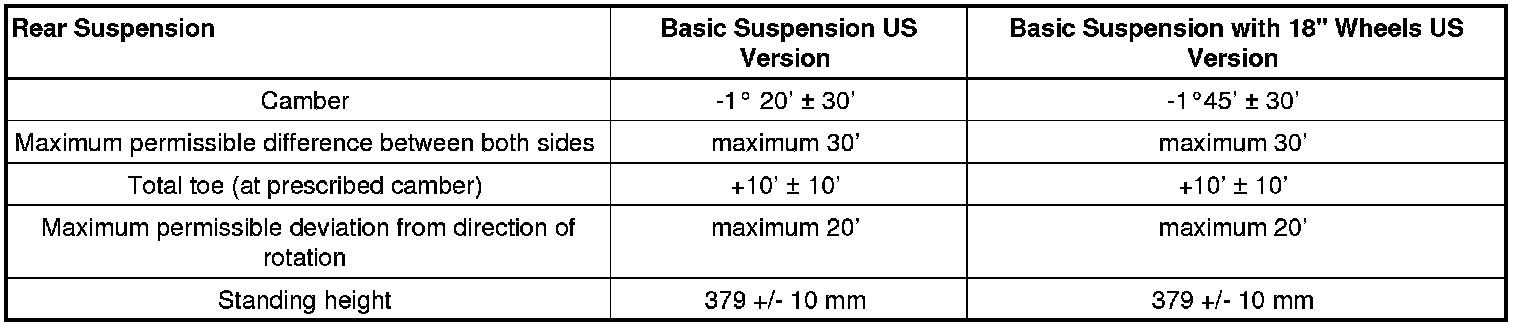

Wheel Alignment Specified Values

• Specifications valid for all engine versions

• Explanation of PR. numbers, refer to => [ Vehicle Data Label ] Application and ID.

Standing heights listed in the tables refer to dimension - a -.











1 The toe angle difference can also be indicated negatively in alignment computer, depending on manufacturer.






1 The toe angle difference can also be indicated negatively in alignment computer, depending on manufacturer.






1 The toe angle difference can also be indicated negatively in alignment computer, depending on manufacturer.

• Specified values valid for all engine versions.

• Explanation of PR. numbers, refer to => [ Vehicle Data Label ] Application and ID.
