Headlamp Power Output Stage (J667)/(J668)

Headlamp Power Output Stage (J667)/(J668)

The Left headlamp power output stage (J667) or the Right headlamp power output stage (J668) is located at the bottom of the headlamp housing.

• The following illustrations show the procedure for removing and installing the headlamp power output stage on the right headlamp. Removing and installing the left headlamp is identical.

Removal

- Remove headlamp. Refer to => [ Headlamps ] Headlamps.

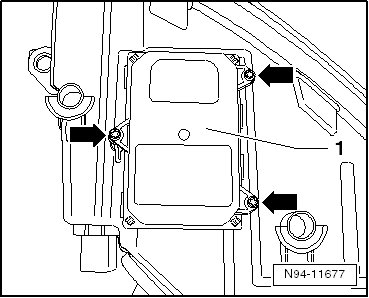

- Remove three mounting bolts - arrows -.






• The connector is disconnected at the same time when the headlamp power output stage is removed from the headlamp housing.

- Remove the headlamp power output stage - 1 - upward from the headlamp housing.

Installation

Install in reverse order of removal, noting the following:


Make sure the seal fits correctly when installing the headlamp power output stage. It is destroyed by ingress of water into headlamp.

- Tighten the screws to the tightening specification given in the assembly overview. Refer to => [ HID Headlamp and Cornering Lamp Overview ] HID Headlamp and Cornering Lamp Overview.

• Code the cornering lamp and headlamp range control module (J745) after installing a new headlamp power output stage, refer to => [ Cornering Lamp and Headlamp Range Control Module (J745), Coding ] Testing and Inspection and then perform a basic setting on the headlamp.

- Check headlamp for function.
