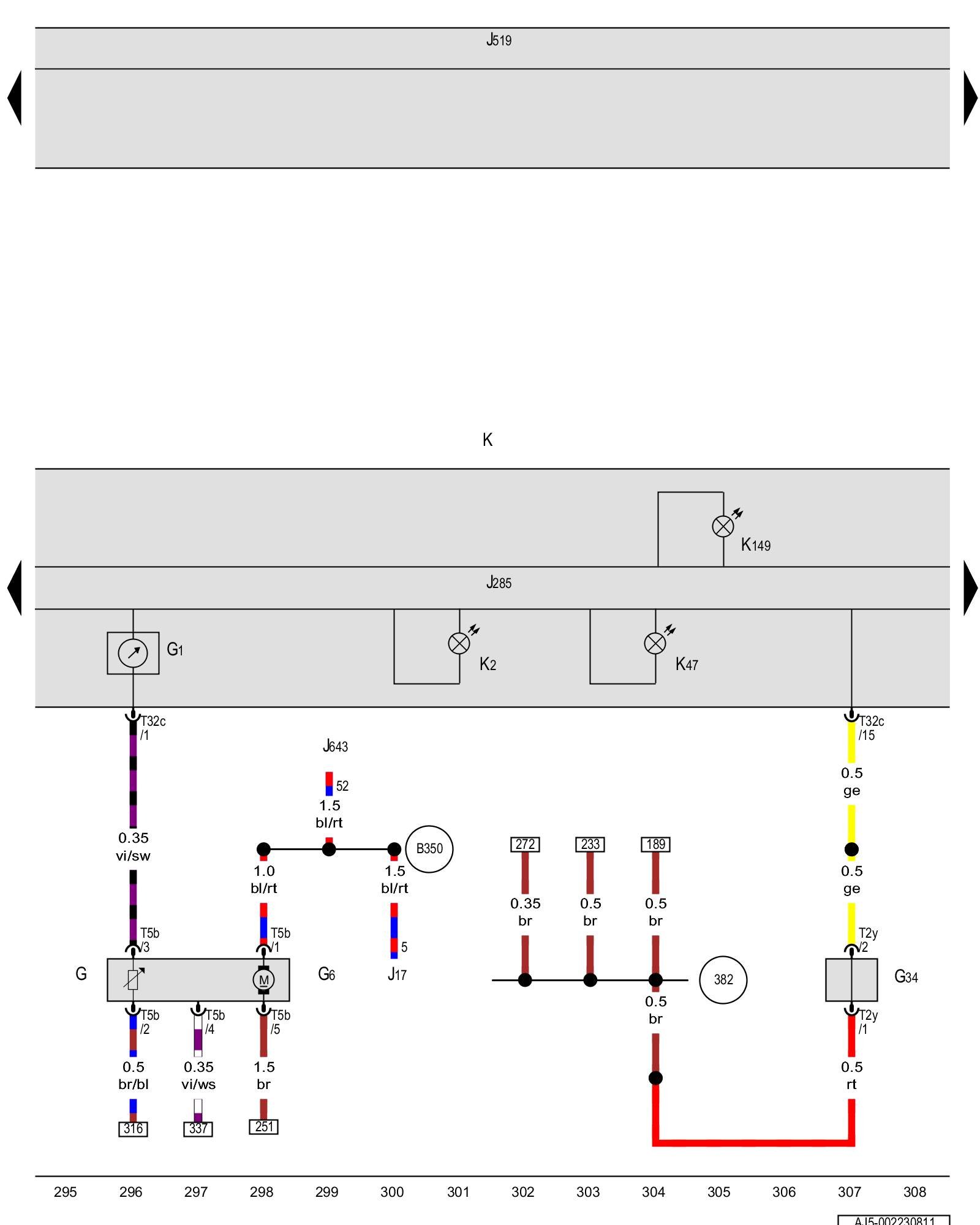

Diagram 2/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left front brake pad wear sensor, Vehicle electrical system control module, Instrument cluster





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G1 - Fuel gauge

G6 - Transfer fuel pump Locations

G34 - Left front brake pad wear sensor Locations

J17 - Fuel pump relay Locations

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module Locations

J643 - Fuel primer relay Locations

K - Instrument cluster

K2 - Generator indicator lamp

K47 - ABS indicator lamp

K149 - Engine electronics indicator lamp

T2y - Double connector

T5b - 5-pin connector

T32c - 32-pin connector

(382) - Ground connection 17 (in main wiring harness)

(B350) - Positive connection 1 (87a) (in main wiring harness)
