Emission Control Systems: Specifications

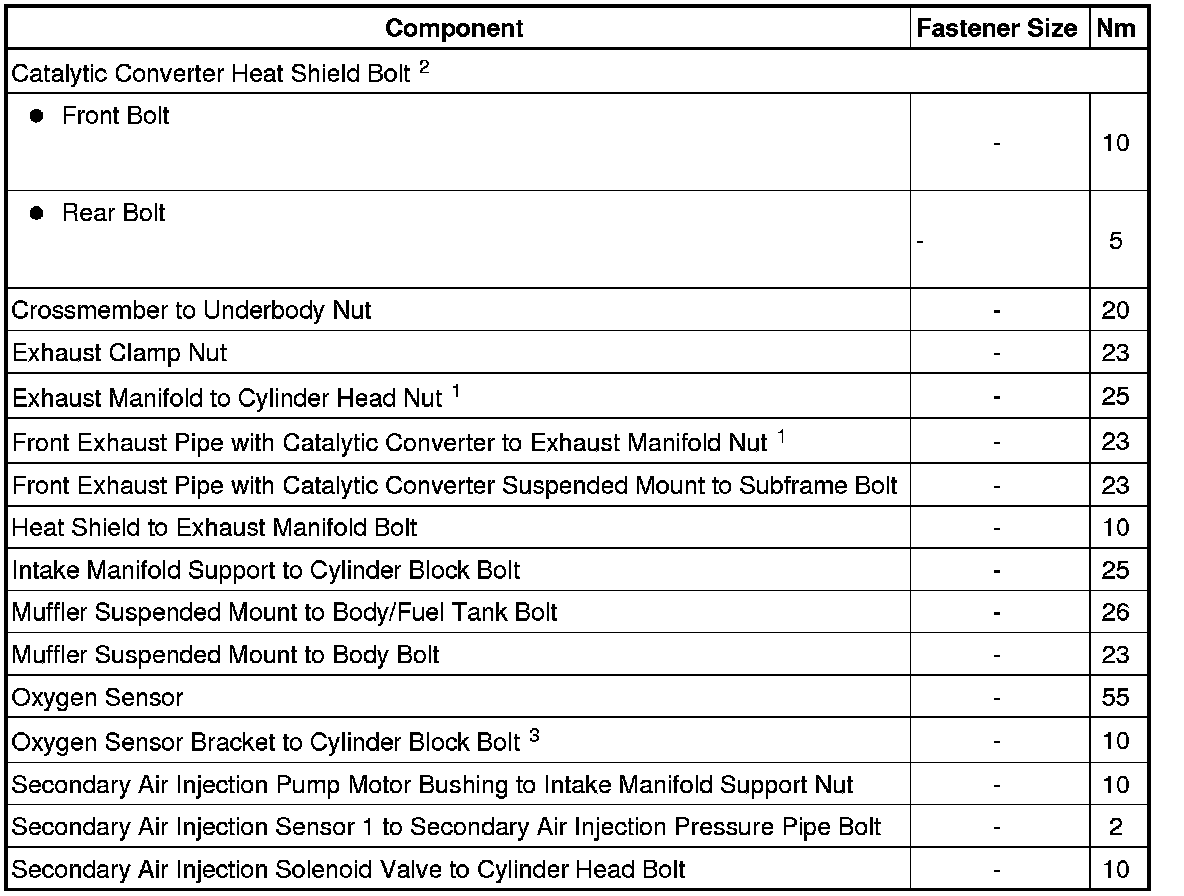

Fastener Tightening Specifications •
1 Always replace
•
2 Engine codes BGP and CBTA only
•
3 Jetta from MY 11 only
Secondary Air Injection Pipe Bolt Tightening Sequence and Specification
-
Install the bolts -
1 through 3 - hand tight.
-
Tighten the bolts -
1 through 3 - in sequence to 10 Nm.
