Engine Oil: Description and Operation

Engine Oil

Oil Capacities:

Refer to Fluid Capacity Tables.

If necessary, fill to the Max. mark on the oil dipstick. Refer to => [ Oil Dipstick Marks ].

Viscosity Classes and Oil Specifications:

Refer to Fluid Capacity Tables.

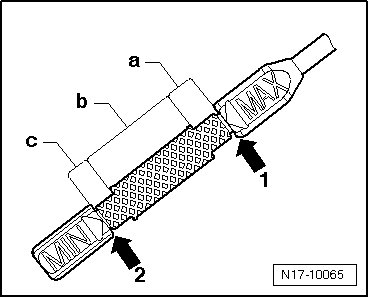

Oil Dipstick Marks





1 MAX mark
2 MIN mark
a Oil level in area of the MAX mark: Do not add engine oil.
b Oil level in the center area: Oil can be added.
c Oil level in area of the MIN. mark: Add approximately 0.5 liters engine oil!
