Fastener Tightening Specifications

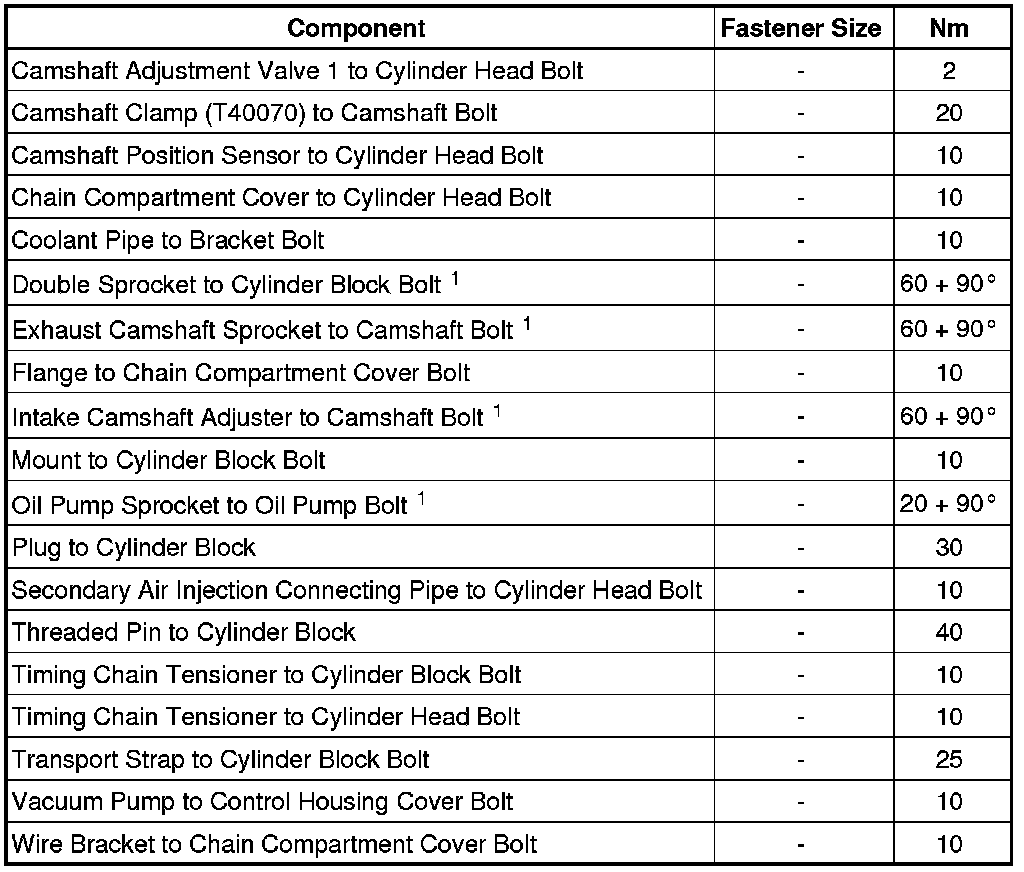

Fastener Tightening Specifications






• 1 Always replace

Cylinder Head Cover Bolt Tightening Sequence and Specification






- Tighten the cylinder head cover bolts - 1 through 16 - in the sequence shown to 10 Nm.

Cylinder Head Bolt Tightening Sequence and Specification

ALWAYS REPLACE HEAD BOLTS





- Tighten the cylinder head bolts - 1 through 12 - in the sequence shown as follows:






- Then, tighten the bolts - 13 - to 10 Nm.

Guide Frame Bolt Tightening Sequence and Specification






- Tighten the NEW bolts - 1 through 7 - to 8 Nm in the sequence shown.

- After that, tighten all the bolts an additional 90° (1/4) turn.
