Diagram 162/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

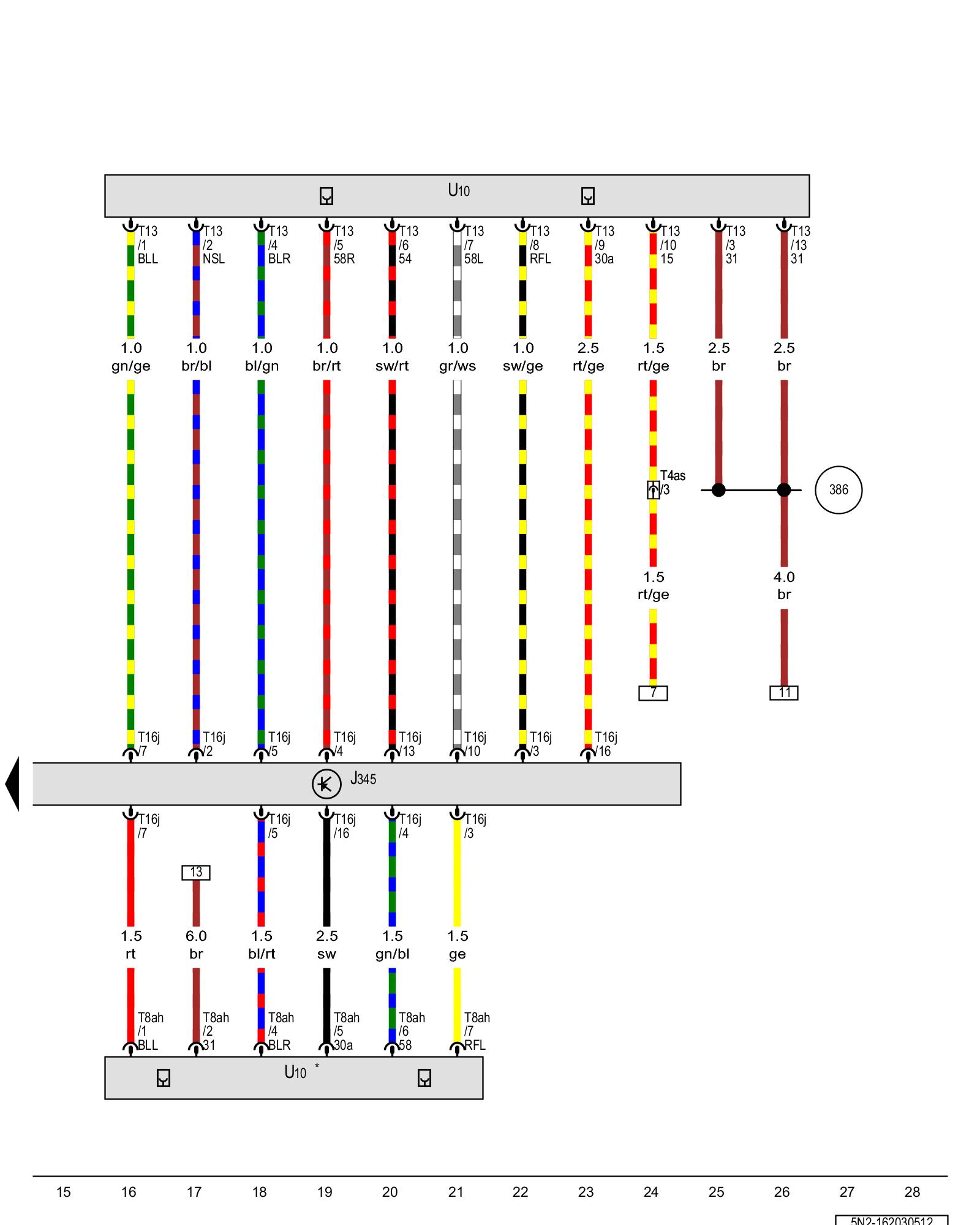

Towing recognition control module, Trailer socket





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J345 - Towing recognition control module Control Modules in Luggage Comp.

T4as - 4-pin connector

T8ah - 8-pin connector

T13 - 13-pin connector

T16j - 16-pin connector

U10 - Trailer socket

(386) - Ground connection 21 (in main wiring harness)

* - USA only
