Vehicle Alignment Procedure

Vehicle Alignment Procedure

Special tools, testers and auxiliary items required

• Wheel alignment computer (V.A.G 1813) or VW/Audi approved wheel alignment devices

• Brake pedal actuator (V.A.G 1869/2)

• Ring Spanner Insert AF 21 (T10179)

• Shock absorber set (T10001)

Observe the following work sequence!

- Pay attention to notes on wheel alignment device

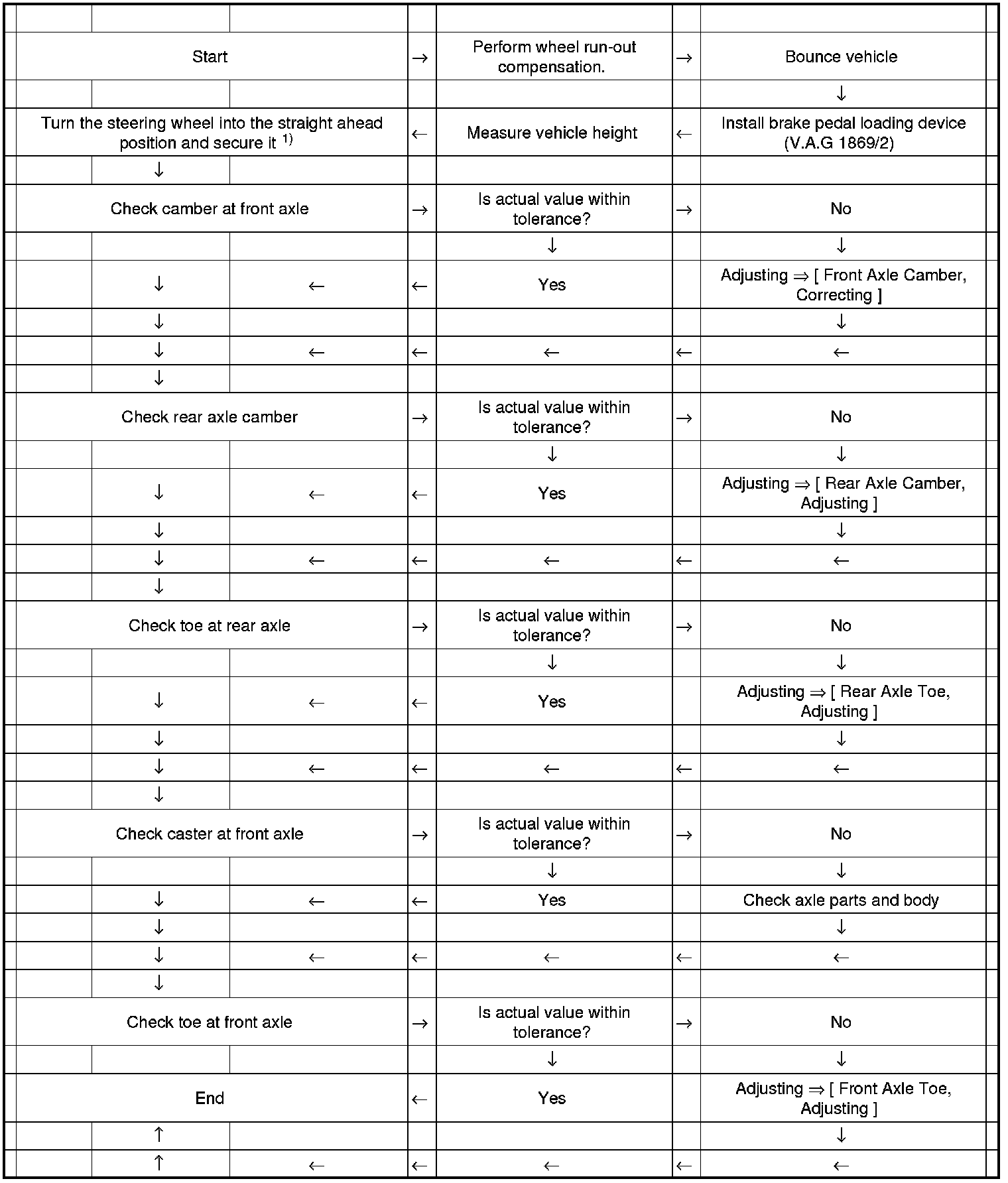

Measuring procedure






1) If steering wheel is crooked at end of alignment procedure, it must be straightened. Perform a basic setting on the steering angle sensor (G85) using the Vehicle diagnostic tester.
