System Specifications

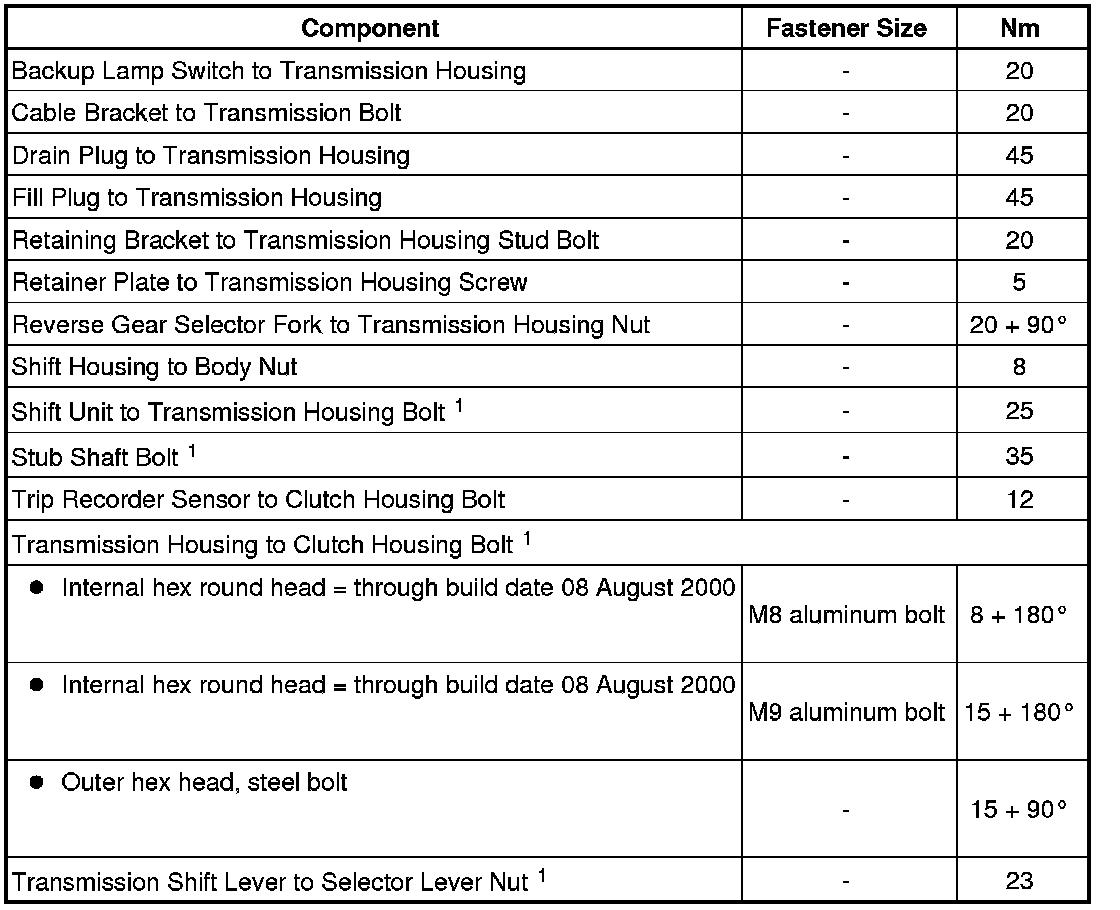

Fastener Tightening Specifications •
1 Always replace

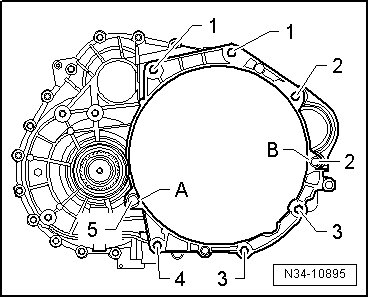

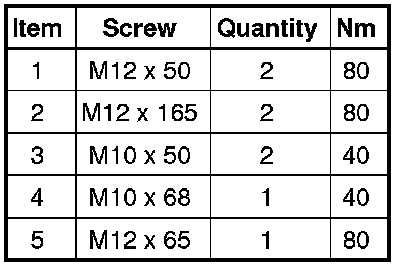

Transmission to Engine Bolt Tightening Sequence and Specification
-
A and B -: alignment pins

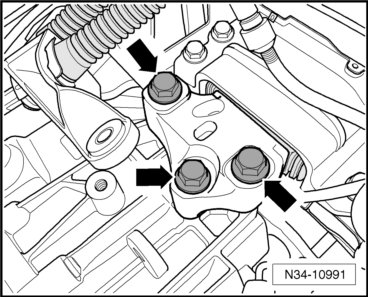

Transmission Mount to Transmission Bolt
-
Replace the bolts.
Tighten the bolts -
arrows - to 60 Nm + 90° (1/4) additional turn.

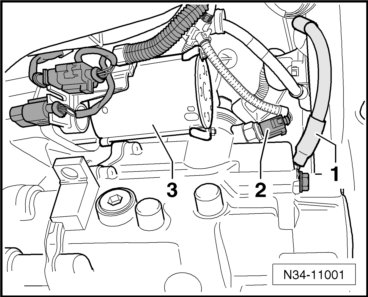

Ground Cable to Transmission Bolt/Nut
-
Tighten the ground cable -
1 - bolt/nut to 20 Nm
