EVAP System Overview, with an Additional Filter






EVAP System Overview, with an Additional Filter

Some vehicles have an additional air filter installed on the Evaporative Emission (EVAP) canister.

Hose connections are secured with either spring-type or clamp type clamps.

Hose clip pliers (VAS 6340) or (VAS 6362) are recommended for installing space saving clamps.

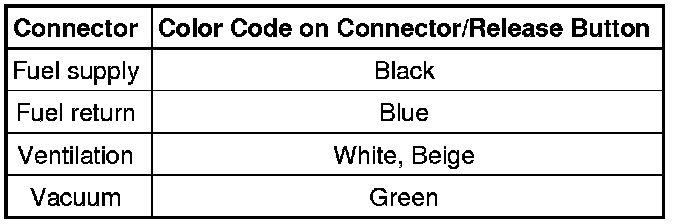

The connectors for fuel, vacuum and ventilation lines are marked with colors. There is either a colored dot on the connector or the release button is the corresponding color.











1 Leak Detection Pump (V144)

2 Vacuum Line

3 Vacuum Hose

4 Connecting Hose

5 Clamp

6 Vent Line

From the fuel tank.

7 Clip

8 Connecting Hose

Air filter housing to leak detection pump.

9 Bolt

10 Air Filter Housing

11 Auxiliary Air Filter Housing

12 Nut

10 Nm

13 Vent Line

To the EVAP canister purge regulator valve 1.

Clipped to the fuel tank.

14 Connecting Hose

15 EVAP Canister

Installed location: Inside the right rear wheel housing.

Remove the bolts and pull the EVAP canister downward.

16 Bolts
