NOx Sensor G295

NOx Sensor G295

Removing

- Remove the engine cover. Refer to => [ Engine Cover ] Engine Cover.

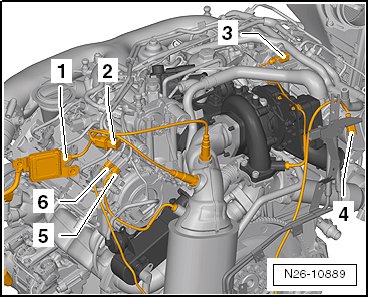

- Disconnect the connector - 1 - from the NOx sensor control module.






- Remove the nuts - arrows - and remove the NOx sensor control module.

- Remove the NOx sensor - 4 -.






Installing

• For the correct tightening specification, refer to => [ Exhaust Sensor Overview ] Exhaust Sensor Overview.

Install in the reverse order of removal.
