Temperature Sensor (Gauge): Testing and Inspection

Temperature sensor, checking

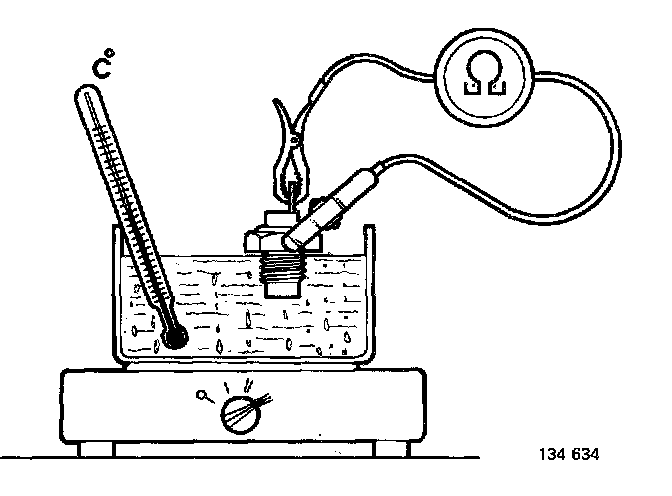

^ Check sensor by connecting ohmmeter between terminal pins and body (or between connector pins on 1987- models).
^ Immerse sensor in water up to top of thread.

Note: Neither thermometer nor sensor should touch bottom of vessel.

Temperature, °C (°F) Resistance, ohm
60 (140) 217 ± 35
90 (194) 87 ± 15
100 (212) 67 ± 11

(1987-)
Temperature, °C (°F) Resistance, ohm
60 (140) 560
90 (194) 206
100 (212) 153
