Home >> Volvo >> 1983 >> 760 L6-2383cc 2.4L DSL Turbo D24T >> Repair and Diagnosis >> Powertrain Management >> Glow Plug System >> Diagrams

Glow Plug System: Diagrams

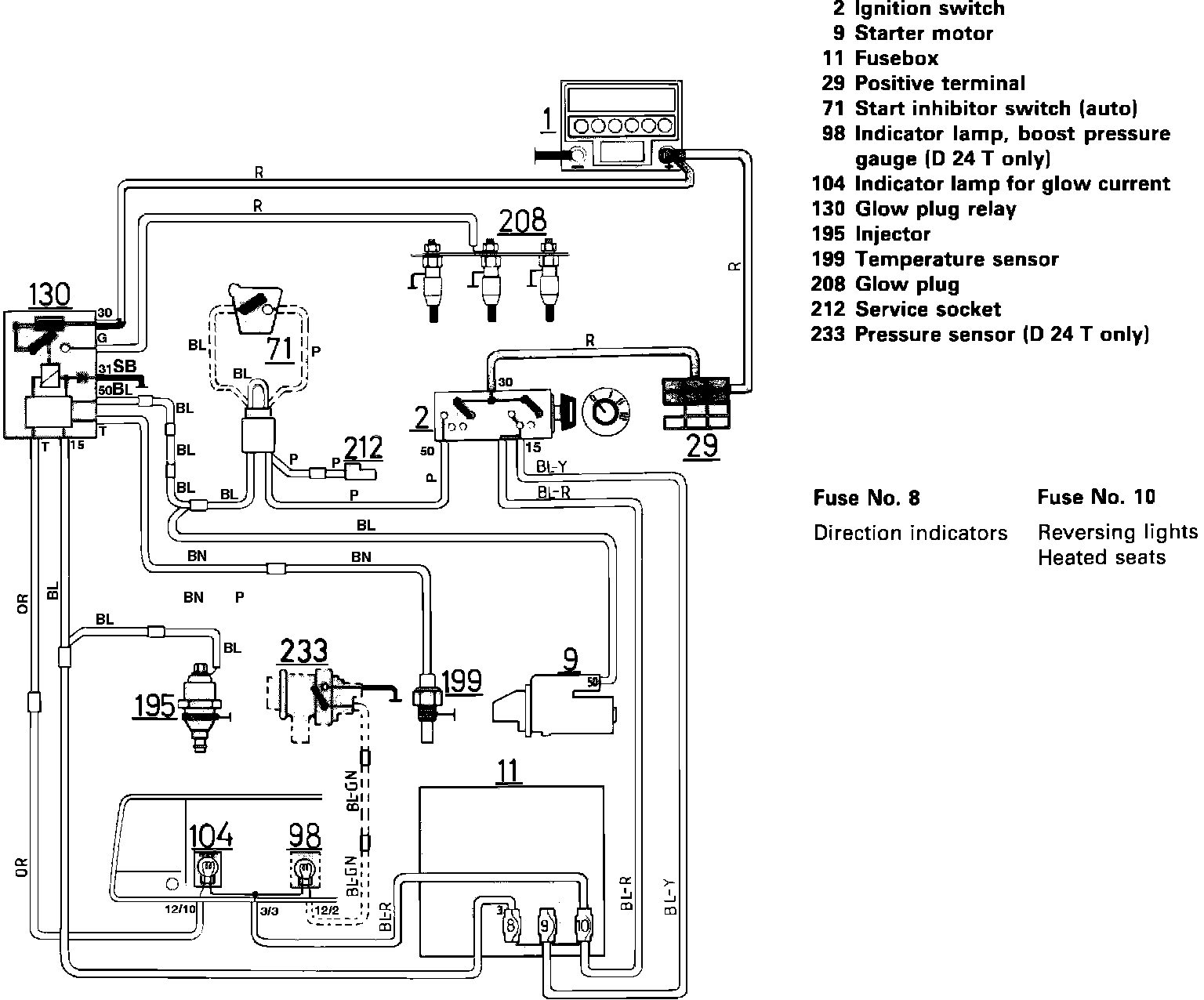

Fig. 111 Glow Plugs:
