Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

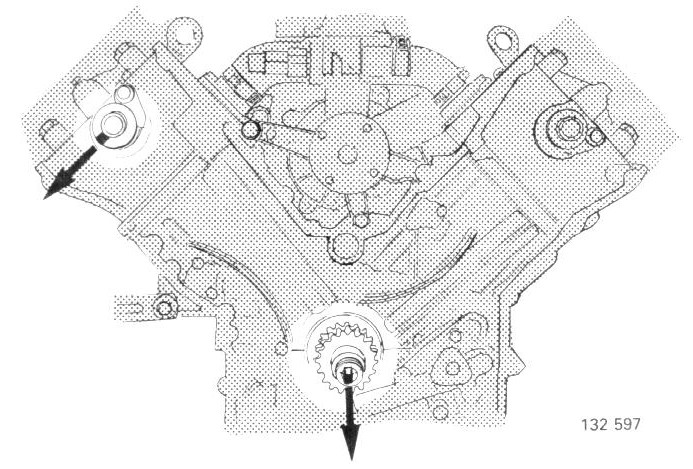

Left Timing Chain

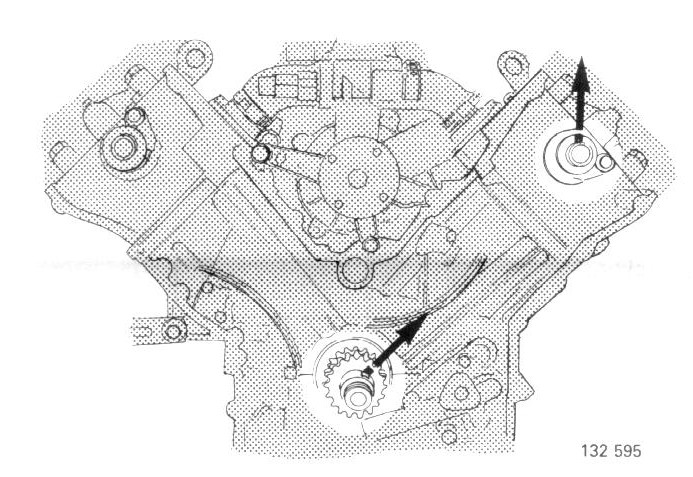

Right Timing Chain

Note: Volvo does not provide precise timing marks for the camshafts. Proper engine timing requires installation of the chains in a specific way.

For further information refer to Timing Chain : Service and Repair
