Start Inhibitor/Reversing Light Switch, Replacement

1. Remove ashtray and center console panel.

Selector Lever Casing:

2. Remove left-hand section of selector lever casing with brush attached. Remove two screws under brush.

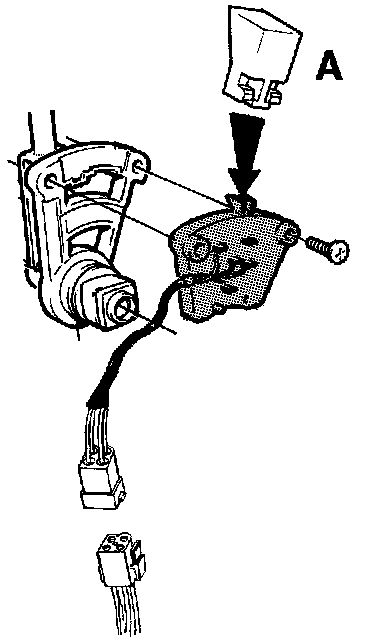

3. Remove start inhibitor/reversing light switch from segment. Open connector and lift off switch.
4. Install new switch. Rejoin connector. Ensure that projection on gear selector lever is seated in slot in switch. Remember to reinstall light prism (A).

Inhibitor/reversing Light Switch:

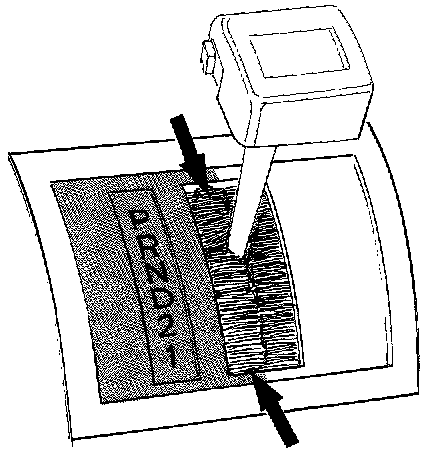

5. Install left-hand section of selector lever casing with brush. Press rubber seal into position all round.
6. Install panel and ashtray.
