Connecting the Monotester

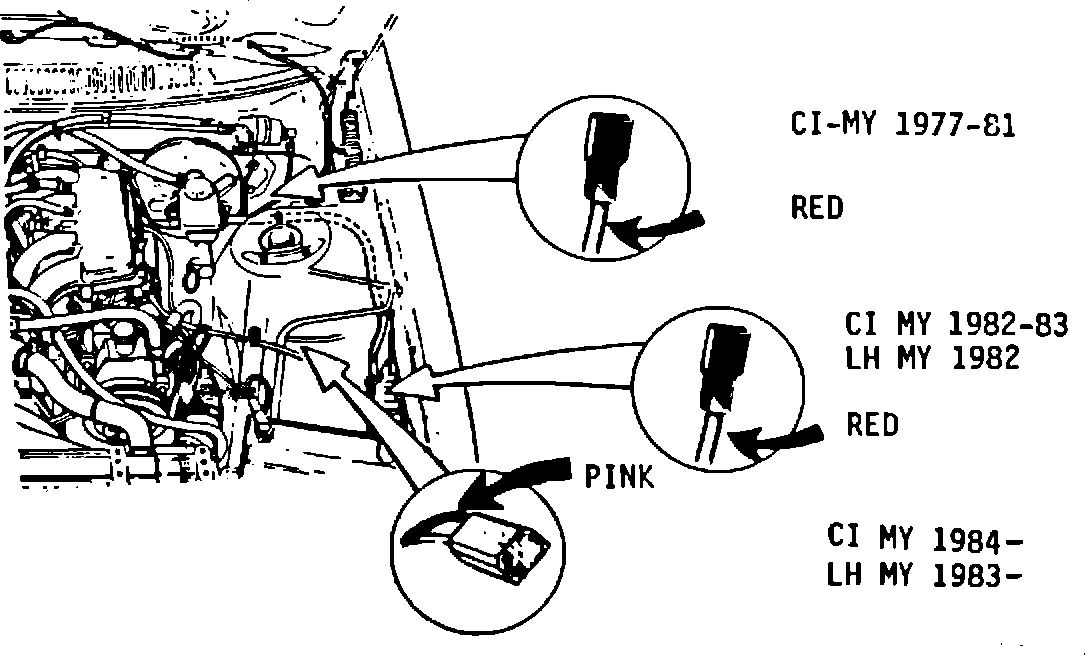

Connect the monotester, as described in the operating manual, but note that the blue lead must be connected to the Lambda service pickup, which is located at the firewall on early P20, near the battery on later P20 models.

NOTE: When driving the vehicle with the monotester connected, the positive red) lead must be increased in length by 600 mm (24").
