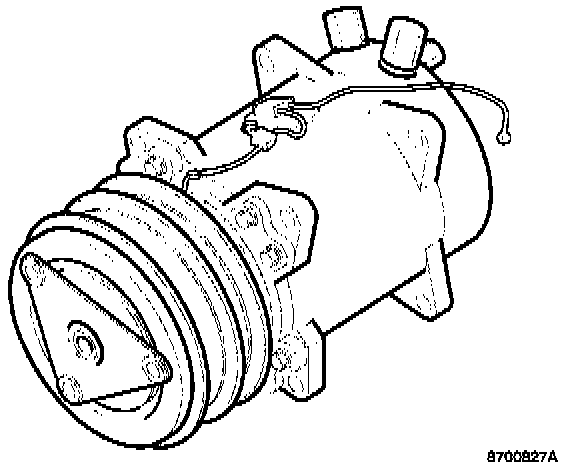

Check Clearance/Finishing Work

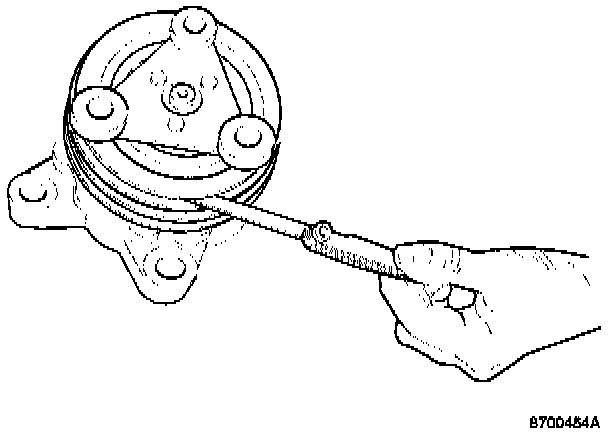

Run a feeler gauge all the way around in the gap. Clearance should be between 0.3 and 0.5 mm. 0.3 mm should pass all around the gap.

If the clearance is not between the given values, use shims to adjust clearance until it does.

Shims are available in the following dimensions:

^ 0.2 mm

^ 0.3 mm

^ 1.0 mm

Work after checking clearance





Install diode.

Connect connector.

Install:

- compressor (diesel)

- splash guard under engine

Lower the car.

Reinstall drive belt.

Tension drive belt and tighten the compressor.

Install:

- air cleaner (ACL) assembly

- preheating hose

- battery lead

Reset the clock and enter anti-theft radio code.

Function check

Operation No. Labor description Time
allowance

87426-2 Replacing magnetic clutch 1.2 hr
