M/T - Improved Reverse Shift Quality

9215volvo01

MODEL GROUP NUMBER

200/700 43 116

TITLE

MANUAL TRANSMISSIONS

M45, M46, M47

200 ALL

700 ALL

MARKET DATE

US and Canada February 1992


REFERENCE: TP11128/4 (ENGLISH); 11/79; 200 M45/46; -->1978

TP30056/2 (ENGLISH); 04/84; 200 M45/46; 1979 -->

TP30941/1 (ENGLISH); 07/89; 700 M46/47II, RECONDITIONING

Improved reverse shift quality modifications

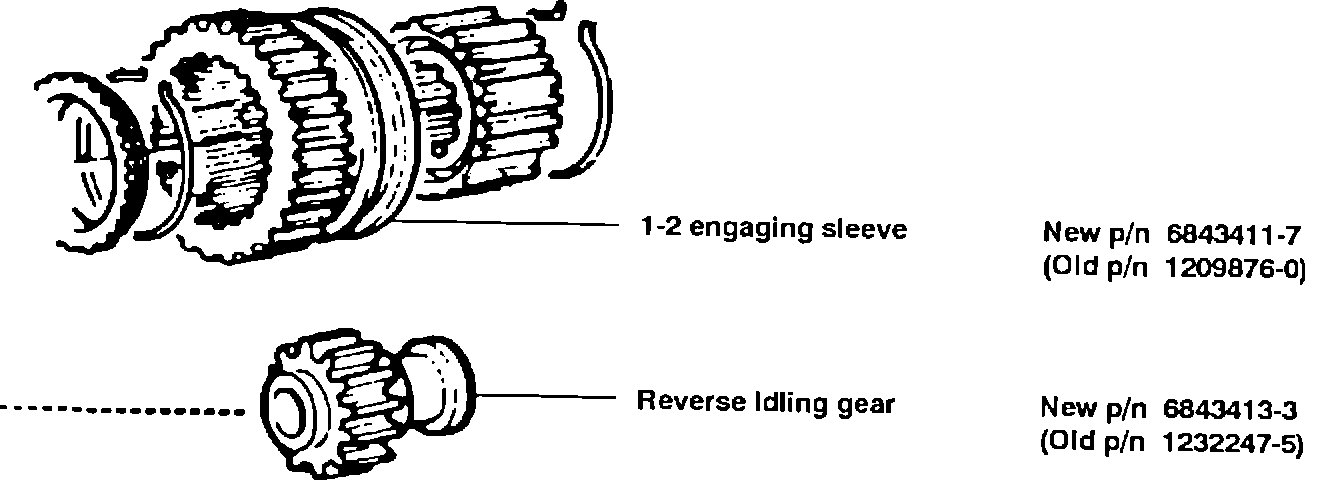

Reverse idling gear and 1-2 engaging sleeve were modified to improve reverse gear engagement. This change took place in production from approximately mid-October, 1991.

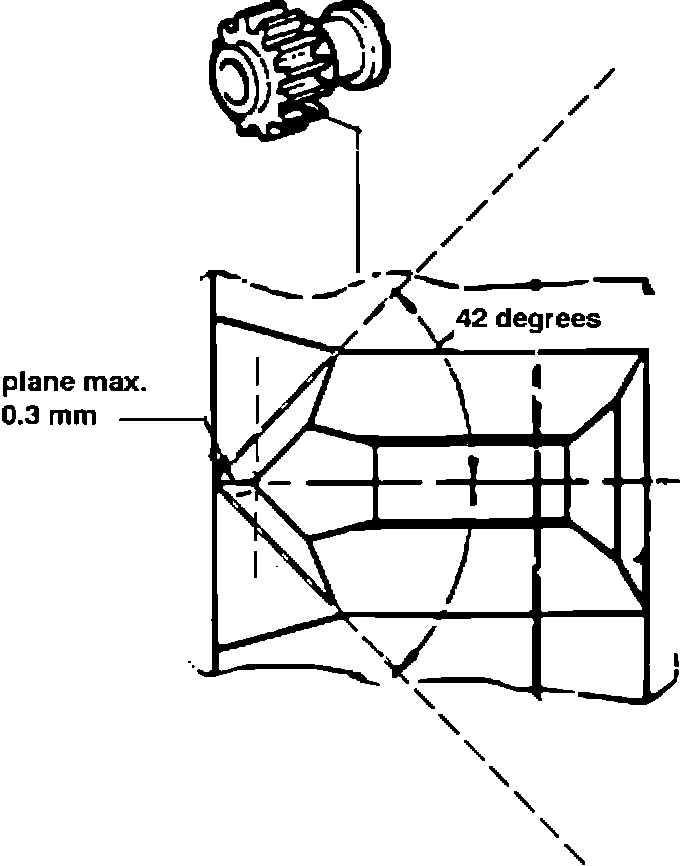

The modification both on reveise idling gear and sleeve 1-2 involves a change of the engaging angle from 45 degrees to 42 degrees. Also the maximum possible plane surface at the top is changed from 0.5 to 0.3 mm max. width. See figure.


Previous parts will be superseded by the new-version parts, which can be used in older gearboxes in any combination. If there is a complaint related to engaging reverse gear with an older gearbox, replacing both components will produce the best results. Replacement of both parts is not necessary unless complaint is specific to difficult reverse gear engagement. Installation of these parts will not affect forward gear operations.
