Power and Ground Distribution: Locations

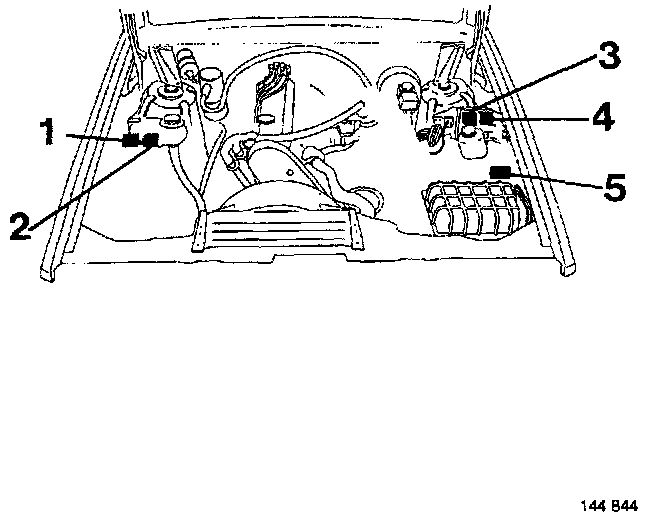

RELAY IDENTIFICATION:

1 - Cooling Fan Relay (1988-1990 760 B280F)
- Fuel Injection Relay (1991 B230F / B234F)

2 - Radio Interference Suppressor Relay (1987-1990 B230F / B280F)
- Pressure Relay, Fan (1983-86 D24 / D24T)

3 - Hot Start Impulse Relay (1983-86 B28F)
- Radio Interference Suppressor Relay (1987-on B230FT)
- Injection Valve Relay (1991 B230F/FT B234F)
- Cooling Fan Relay (1988-on 760 B230FT)
- Cooling Fan Cut Off Relay (1991 B234F)
- Glow Plug Relay (1987-on D24 / D24T)

4 - Radio Interference Suppressor Relay (1988-1990 760 B230FT)
- Delay Relay EGR (1984-on D24T)

5 - Glow plug relay (1988-on D24 / D24T)

NOTE: The Cooling Fan Relay for 780 B230FT is located on a bracket under the left headlight.
