Power Seat - Height Adjuster
SECTION8
GROUP
85
NO.
917
DATE
Dec. 1994
New height adjuster for power seats
700, 900
REFERENCE:
TP 8202201, SECTION 8 (82-86,88), BODY FITTINGS, EXTERIOR, 700/900 1982-
New height adjuster for power seats, 900 series
A new type of power seat height adjuster will be introduced during Autumn 1994 Only the new type of height adjuster will be stocked as a spare part in the future.
The new height adjuster has the part number 9136096-6.
On cars with the new height adjuster fitted or on replacement of the old type with the new type note that the attachment screws (PIN 1353514-1) between the adjustment rail and the seat frame are no longer used.
The new type of height adjuster without the rear attachment screws was introduced into production from chassis nos. 944-191234, 945-133349, 964-50559,965-18994.
The front attachment screws were withdrawn during 1988.
Replacing the height adjuster with the new type can minimize rattling and noise from under the seat.

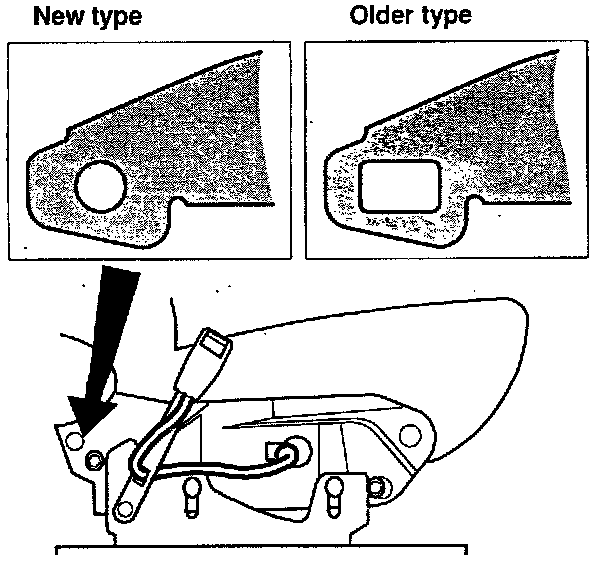

The difference between the two types of adjuster can be seen at the rear tube mounting point on the height adjuster (see illustration).
Height adjusters
The new design has a round mounting for the rear frame tube.
The older type has a rectangular mounting for the rear frame tube.
Replacement of height adjuster
Remove:
- negative battery lead
- seat from he car.
Turn seat over.
Remove the clip retaining the covering to the rear edge of the seat.
Remove brackets for the covering.
Remove left side of seat:
- two screws and locking clip retaining the drive shaft
- drive shaft from the seat
Remove Strip clamp holding the connector to the motor. Separate connector halves.
Remove brackets with the three motors (two screws on each side).
Remove right side of seat:
- two outer nuts retaining the driver shaft
- two screws and locking clip.
Put motors and drive shafts to one side.
Remove the attachment screws if the height adjuster is of the early type.
Attachment screws are not used on the later type of height adjuster.
Remove the height adjuster and adjustment rails from the seat.
The height adjuster is installed using two screws on each side.
Transfer adjuster rails to the new height adjuster.
Install height adjuster on seat.
Note:
No attachment screws are required for installation of the new type of height adjuster.
Install:
- drive shaft on right side
- bracket for covering (located in the rear drive shaft mounting and in the stud bolt on the outside of the seat).
Install the brackets with the three motors in the seat.
Connect connector halves.
Attach connector to bracket with strip clamp.
Check adjustment rails are lined up on left and right sides.
Install:
- drive shaft on left side with two screws and locking clip
- bracket for covering
- covering in the bracket
- Seat in the car.
Reconnect negative battery lead. Make sure to push it down and torque 5 Nm (45 in.lbs).
Verify seat functions and reset radio code and clock.
On power seats with memory function the end position of the seat adjustment must be calibrated after installation.
See Service Manual for method for calibration:
Section 8 (85)
Power seat with memory function
940/960
1992-
TP 32015/1
WARRANTY STATEMENT:
Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01
Operation No.
QW90 6-digit Labor description Time allowance
85255-2 852352 Power seat, replace height adjuster 1.4 hr
