Fuse Block: Locations

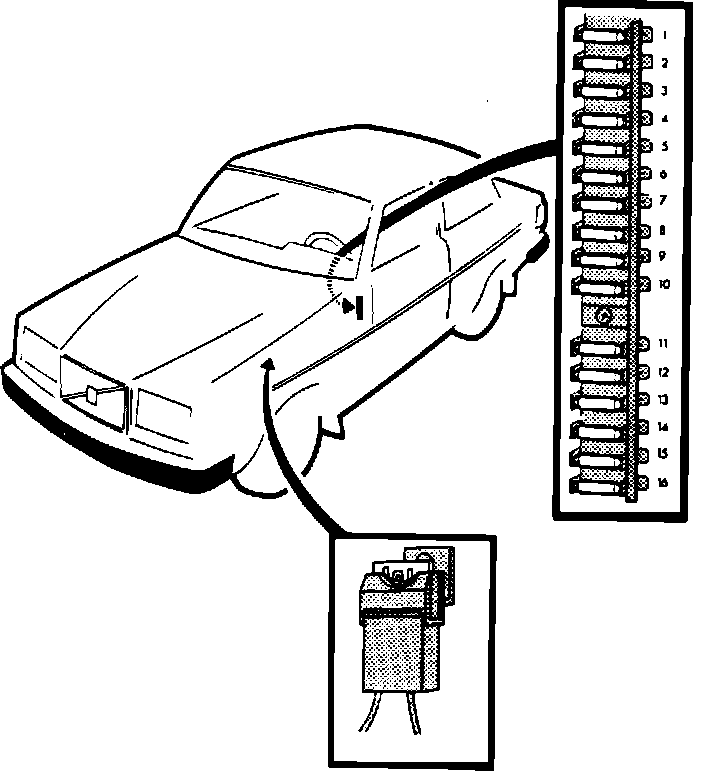

Fuse Locations:
FUSE BOX
The fuse box is located in the drivers side kick panel.
FUSE FOR FUEL INJECTION SYSTEM
The fuel injection fuse is located on the left wheel housing near the ignition coil.
