Starting System: Locations

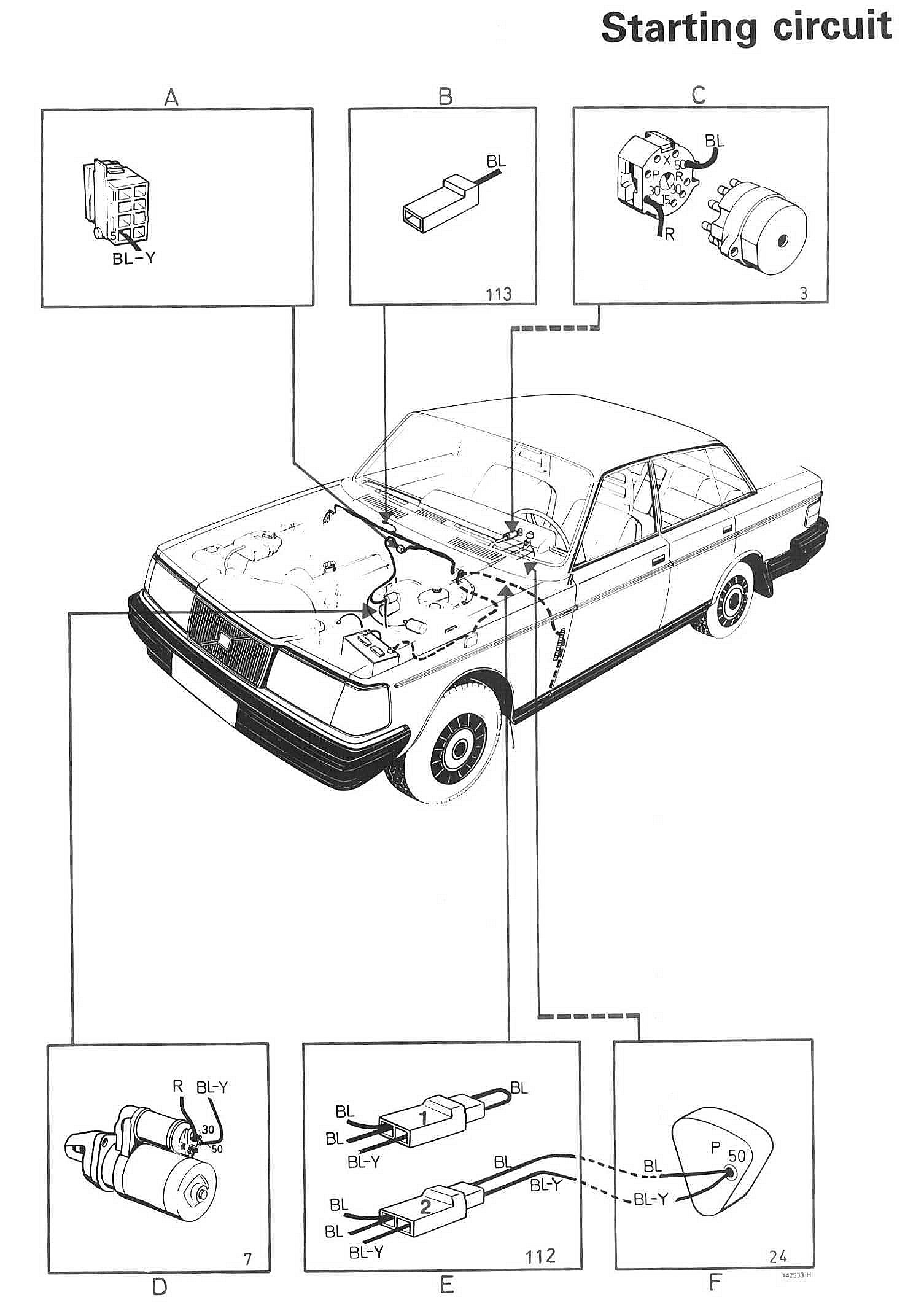

Locations/Connector Views:

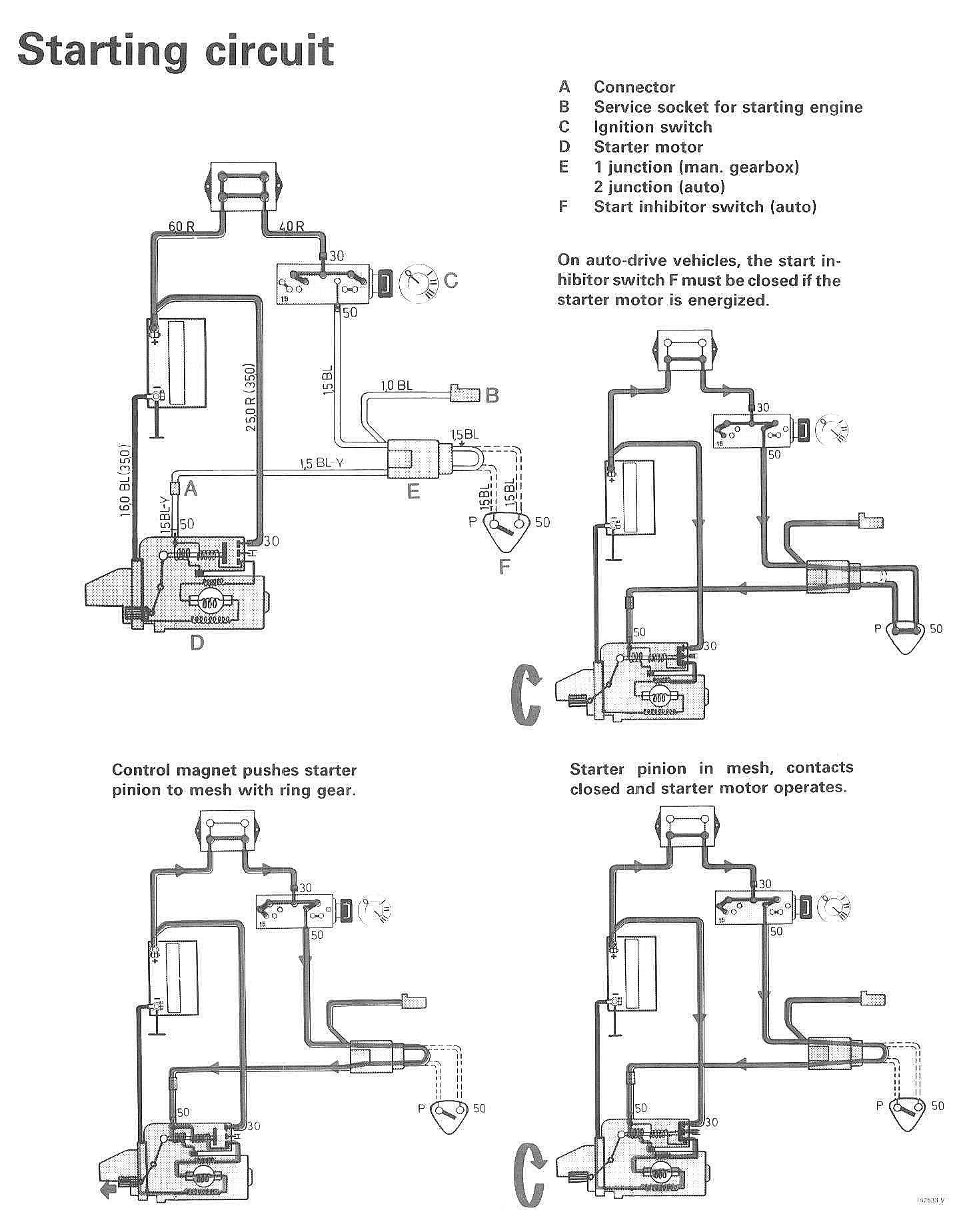

Wiring Diagrams:

LEGEND
A Connector
B Service socket for starting engine
C Ignition switch
D Starter motor
E 1 junction (man. gearbox) 2 junction (auto)
F Start inhibitor switch (auto)

On auto-drive vehicles, the start inhibitor switch F must be closed if the starter motor is energized.
