Installation

1. Fit the new reversing light switch.
2. Connect the electric cables or connector. Check the operation of the switch.

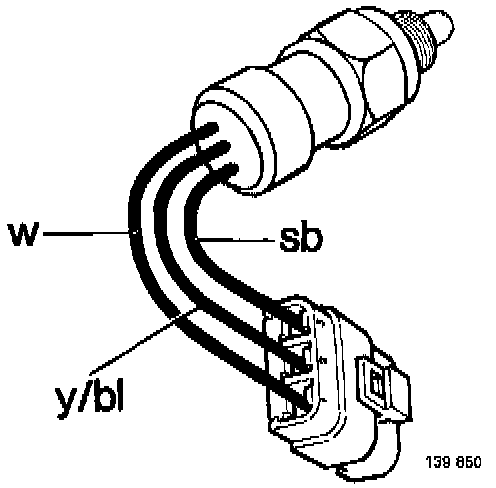

Color codes:
sb = black
w = white
y = yellow
bl = blue
3. Raise the gearbox and secure the cross-member in position.
4. Tighten the exhaust pipe joint.
