Control System

Hydraulic Control System:

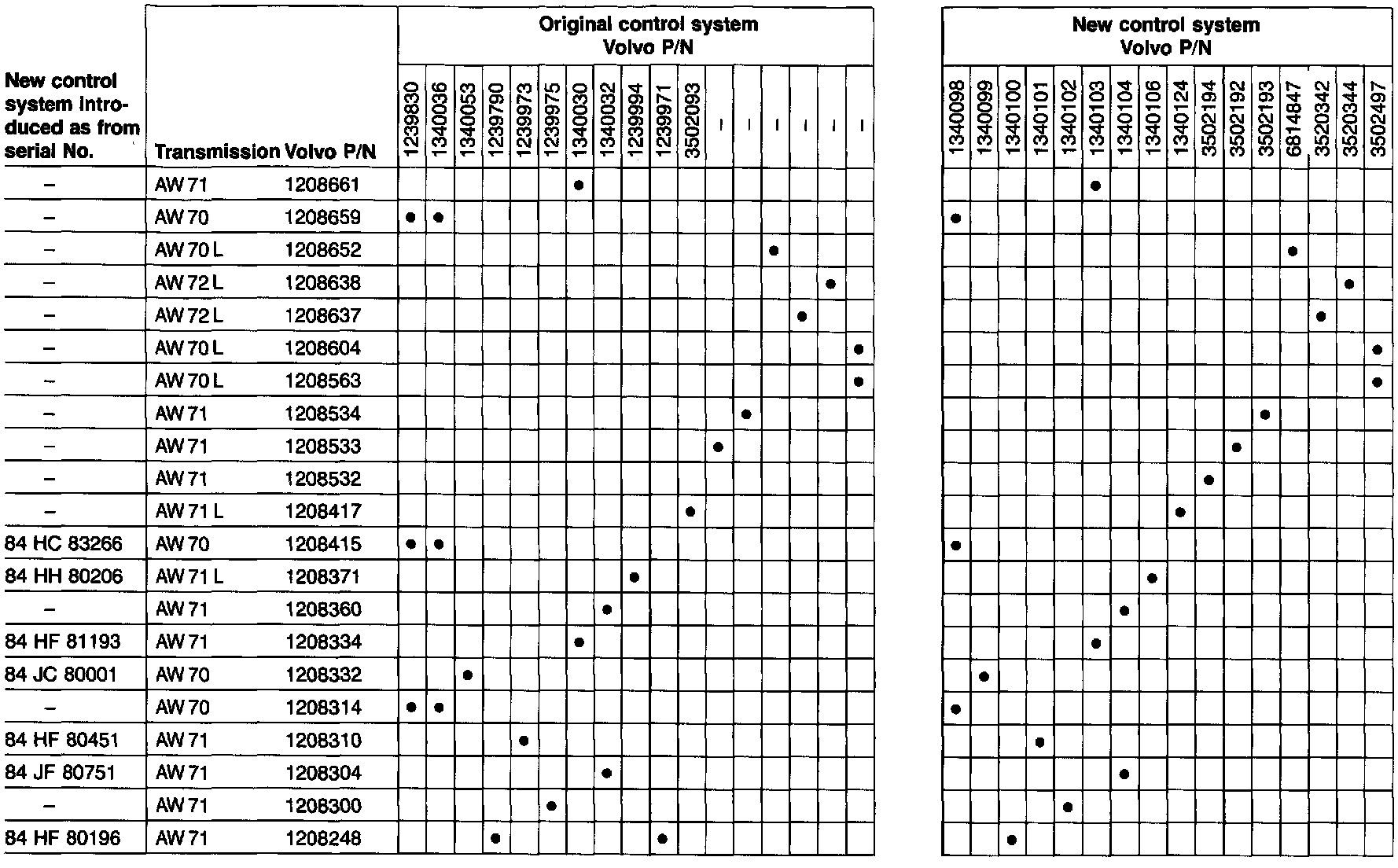

Replacement Schedule - Hydraulic Control System
Although control systems are similar in principle, components must not be replaced by different types since this may alter the gear positions or even render the shifting function completely inoperable. When replacing a complete control system, the original system must be replaced be that shown in the table.
