Operation CHARM: Car repair manuals for everyone.

AW 70/71/72 4-SPD A/T

CAUTION: Automatic transmissions are manufactured almost exclusively from aluminium alloy (light alloy) with bolt and screw threads cut directly in the material. Consequently, it is extremely important that the bolts and screws engage the threads correctly and that they are tightened to the correct torque.

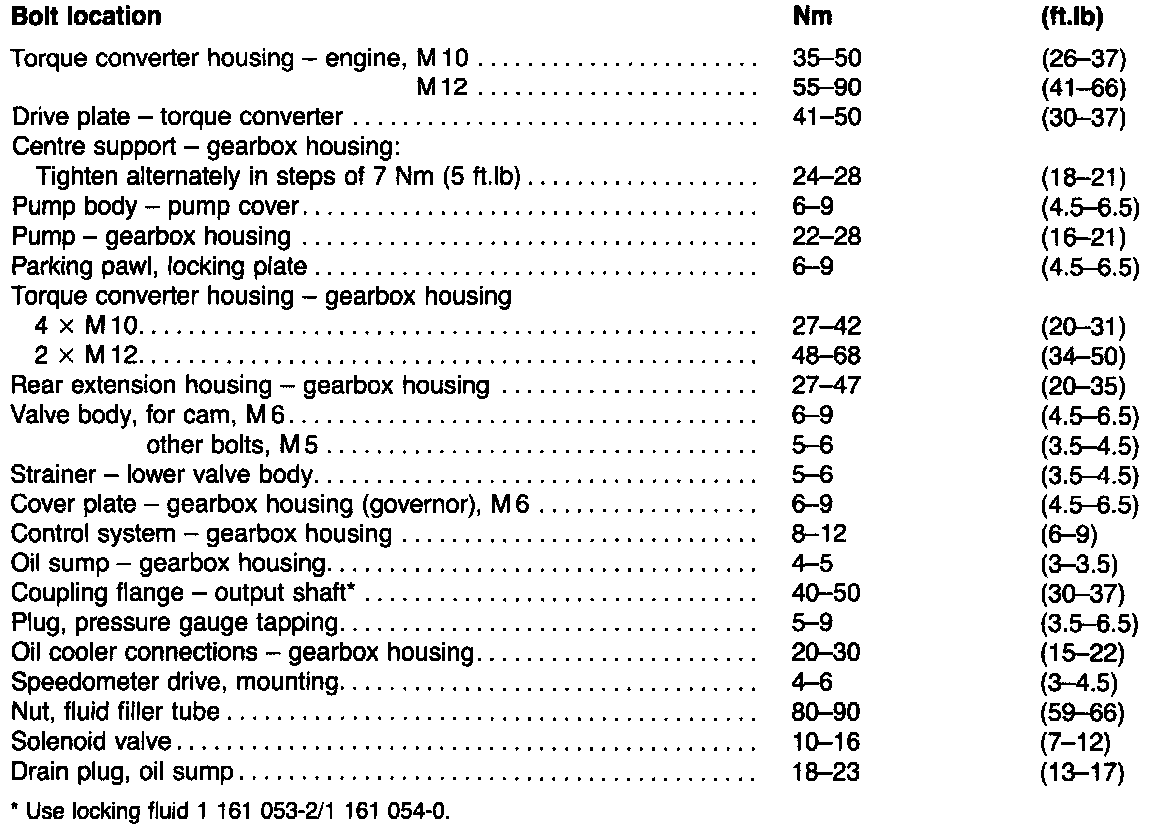

Torque Table:
