Ignition System

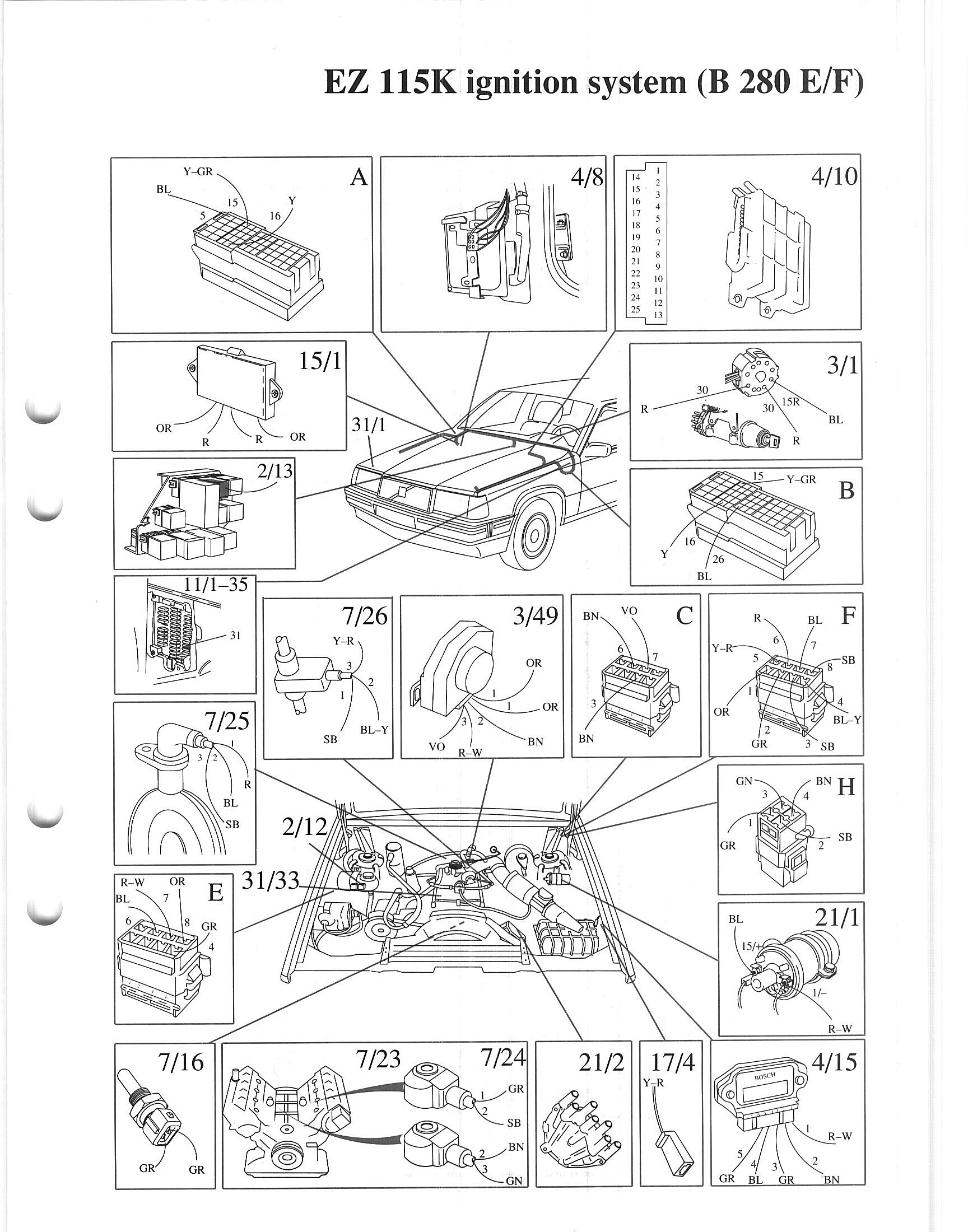

Component / Connector Locations:

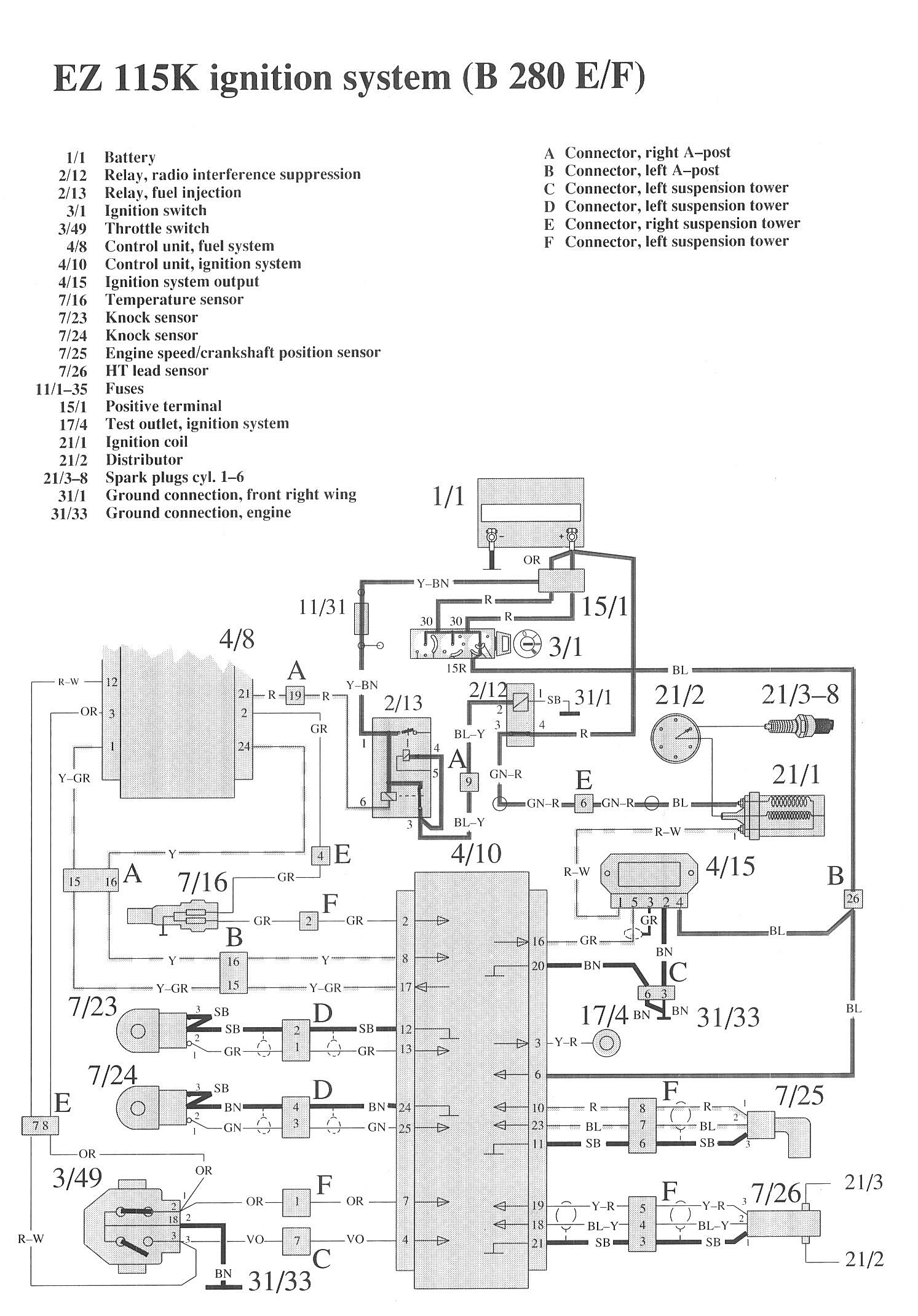

Wiring Diagrams:

LEGEND
1/1 Battery
2/12 Relay, radio interference suppression
2/13 Relay, fuel injection
3/1 Ignition switch
3/49 Throttle switch
4/8 Control unit, fuel system
4/10 Control unit, ignition system
4/15 Ignition system output
7/16 Temperature sensor
7/23 Knock sensor
7/24 Knock sensor
7/25 Engine speed/crankshaft position sensor
7/26 HT lead sensor

11/1-35 Fuses
15/1 Positive terminal
17/4 Test outlet, ignition system
21/1 Ignition coil
21/2 Distributor
21/3-8 Spark plugs cyl. 1-6
31/1 Ground connection, front right wing
31/33 Ground connection, engine
