Starting System: Locations

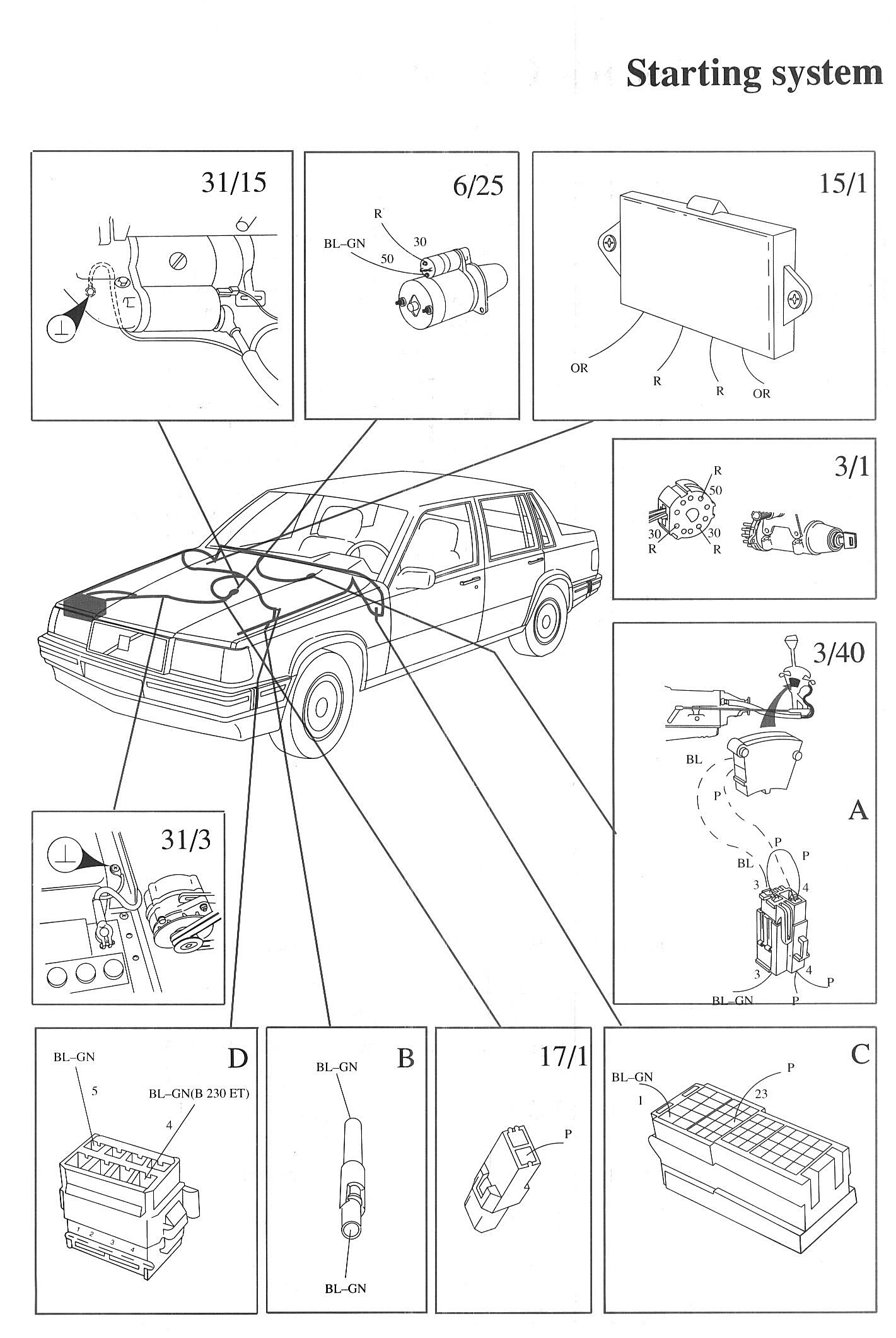

Component / Connector Locations:

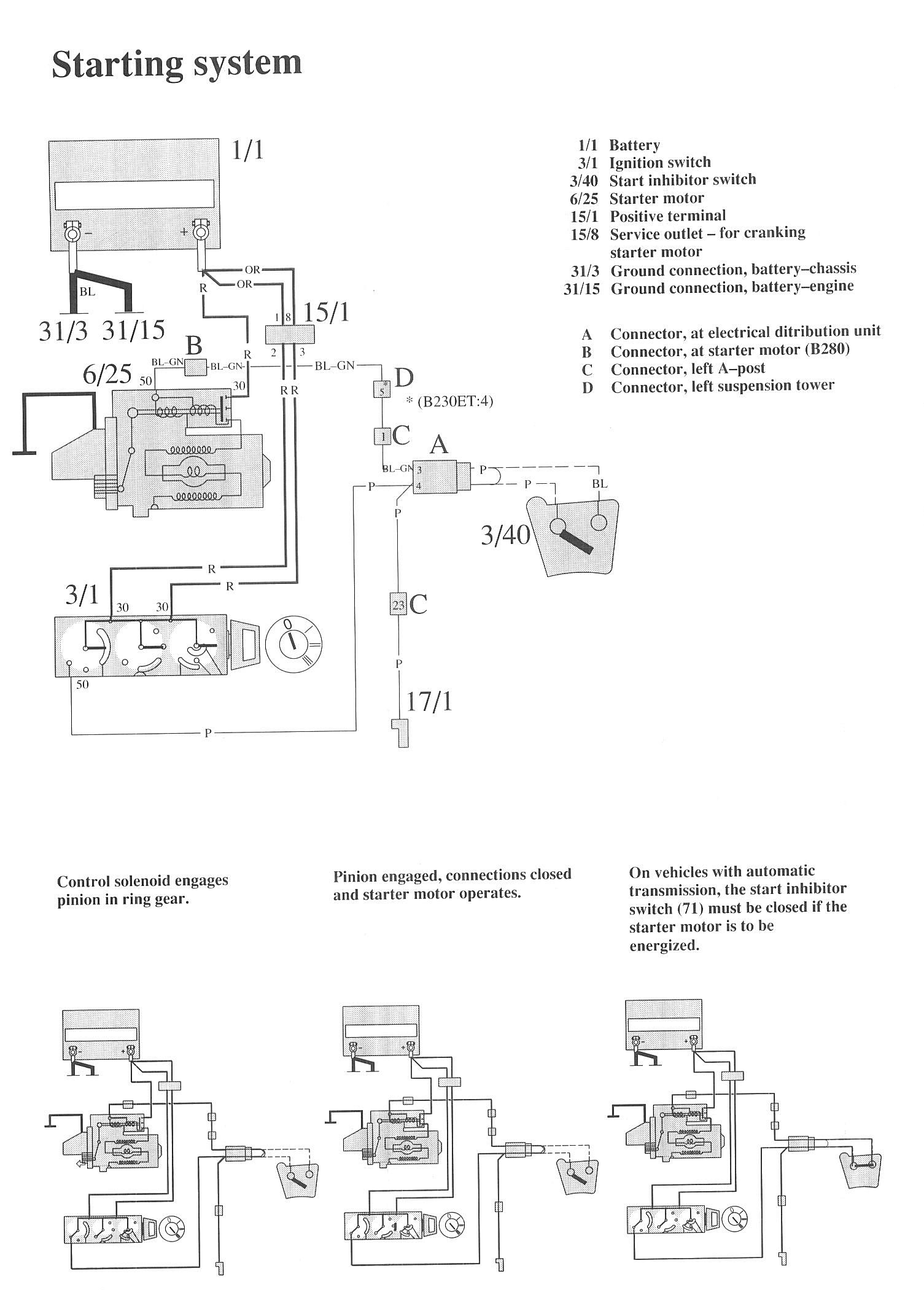

Wiring Diagrams:
LEGEND 1/1 Battery
3/1 Ignition switch
3/40 Start inhibitor switch
6/25 Starter motor
15/1 Positive terminal
15/8 Service outlet - for cranking starter motor
31/3 Ground connection, battery-chassis
31/15 Ground connection, battery-engine
