EZ-116 K Ignition System

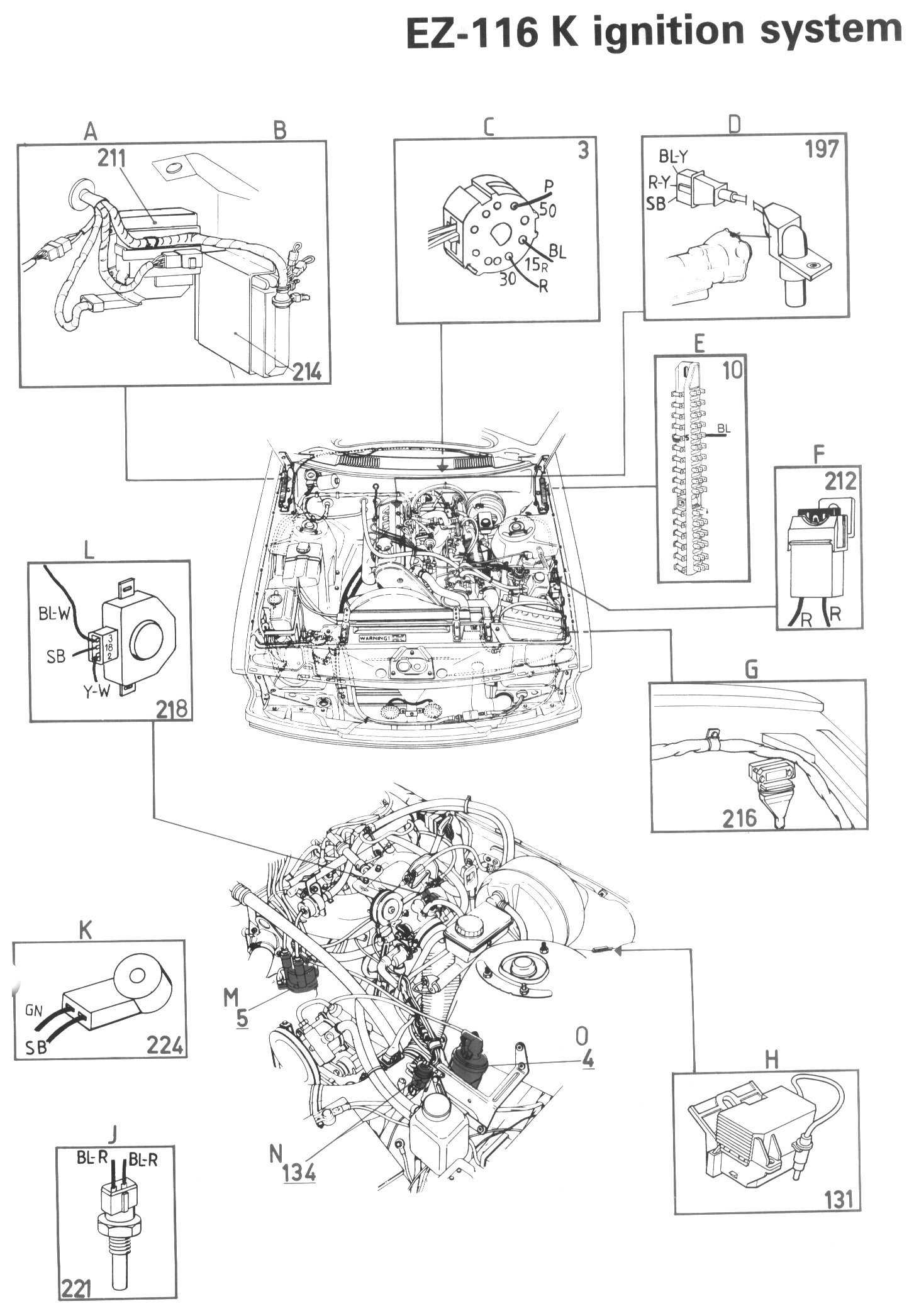

Component / Connector Views:

Wiring Diagrams:

LEGEND
A EZ-116 K ignition system control unit
B Control unit, LH-Jetronic 2.4
C Ignition switch
D Impulse sender
E Fuse box
F In-line fuse
G Power stage, ignition system
H Diagnostic unit (socket)
J Temperature sensor
K Knock sensor
L Throttle switch
M Distributor
N EGR converter (California)
O Ignition coil
P Connector. left suspension tower
R Connector, bulkhead
S 9-pole connector. glove compartment
T Ground, intake manifold
1 Battery
32 Socket at instrument panel (engine diagnostics)
68 Tachometer
