25 Position ECU Plug:




For terminal ID refer to "Computers and Control Systems : Engine Control Module : Diagrams". Connector Views

CAUTION: WHEN MEASURING OHMS DISCONNECT THE ECU FROM THE HARNESS PLUG AND NEVER TURN THE IGNITION KEY ON. IT IS P05SIBLE THAT FAILURE TO FOLLOW THESE STEPS WILL RESULT IN DAMAGE TO THE ECU.

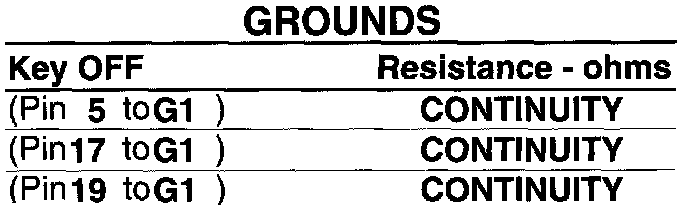

Grounds

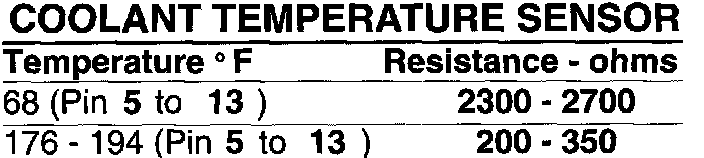

Coolant Temperature Sensor

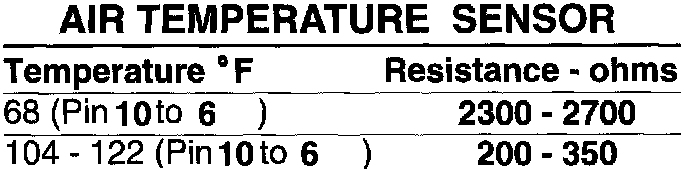

Air Temperature Sensor

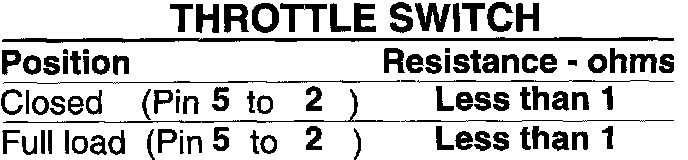

Throttle Switch

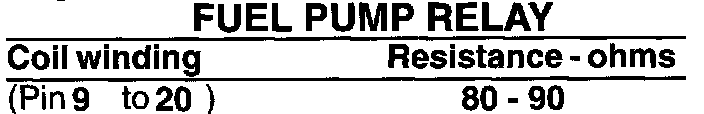

Fuel Pump Relay

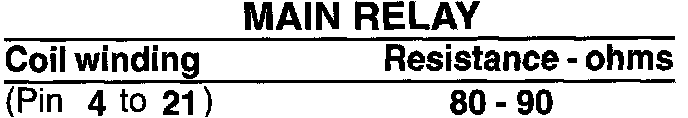

Main Relay

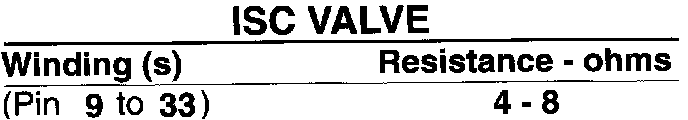

ISC Valve

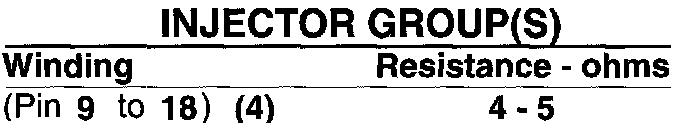

Injector Group(s)

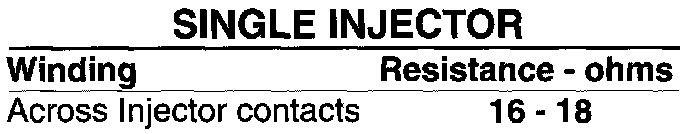

Single Injector

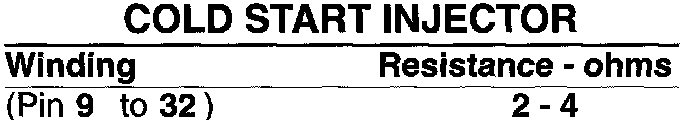

Cold Start Injector
