Windshield Washer Spray Nozzle: Adjustments

H3

Washer Nozzle, Refitting

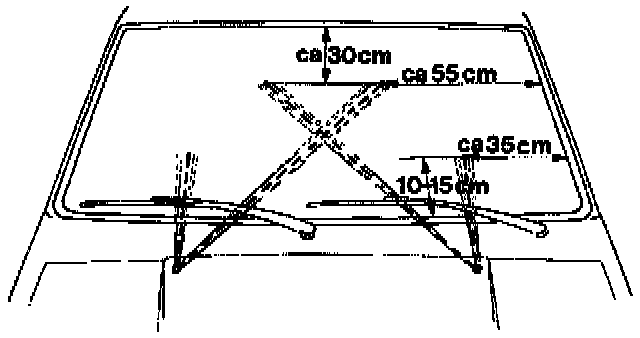

Adjust target areas of jets on shield as per the following illustration.





Mark the target area on the windshield by writing a cross with a marker pen or affixing a strip of masking tape.

Adjust nozzles gently with the aid of an electrical screwdriver. The work is easier with the help of a colleague.

Be careful not to damage the ends of the hoses.

After completing the work, wash away the markings with diluted shield wash fluid, or, alternatively, remove tape.
