Windows: Locations

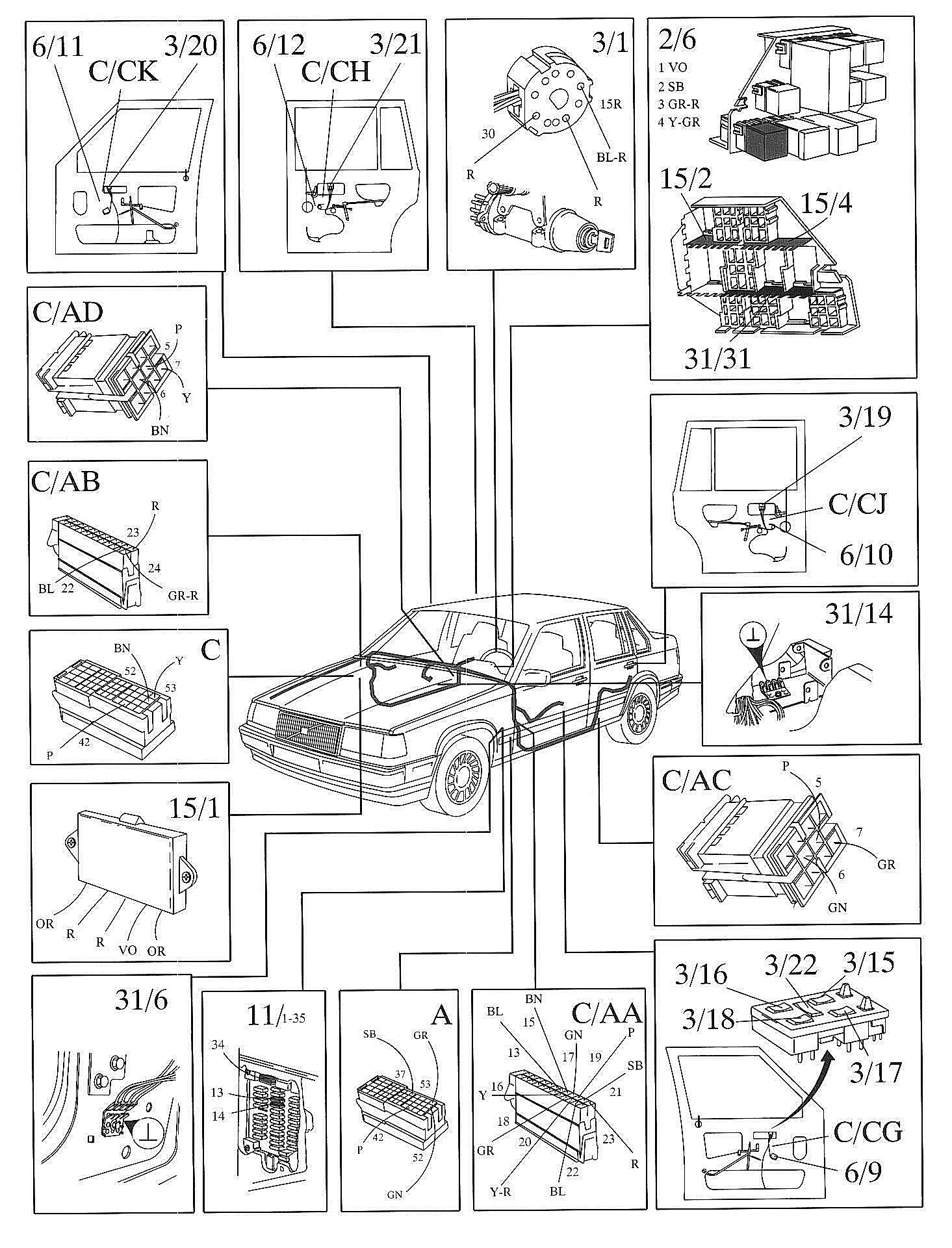

Component / Connector Locations:

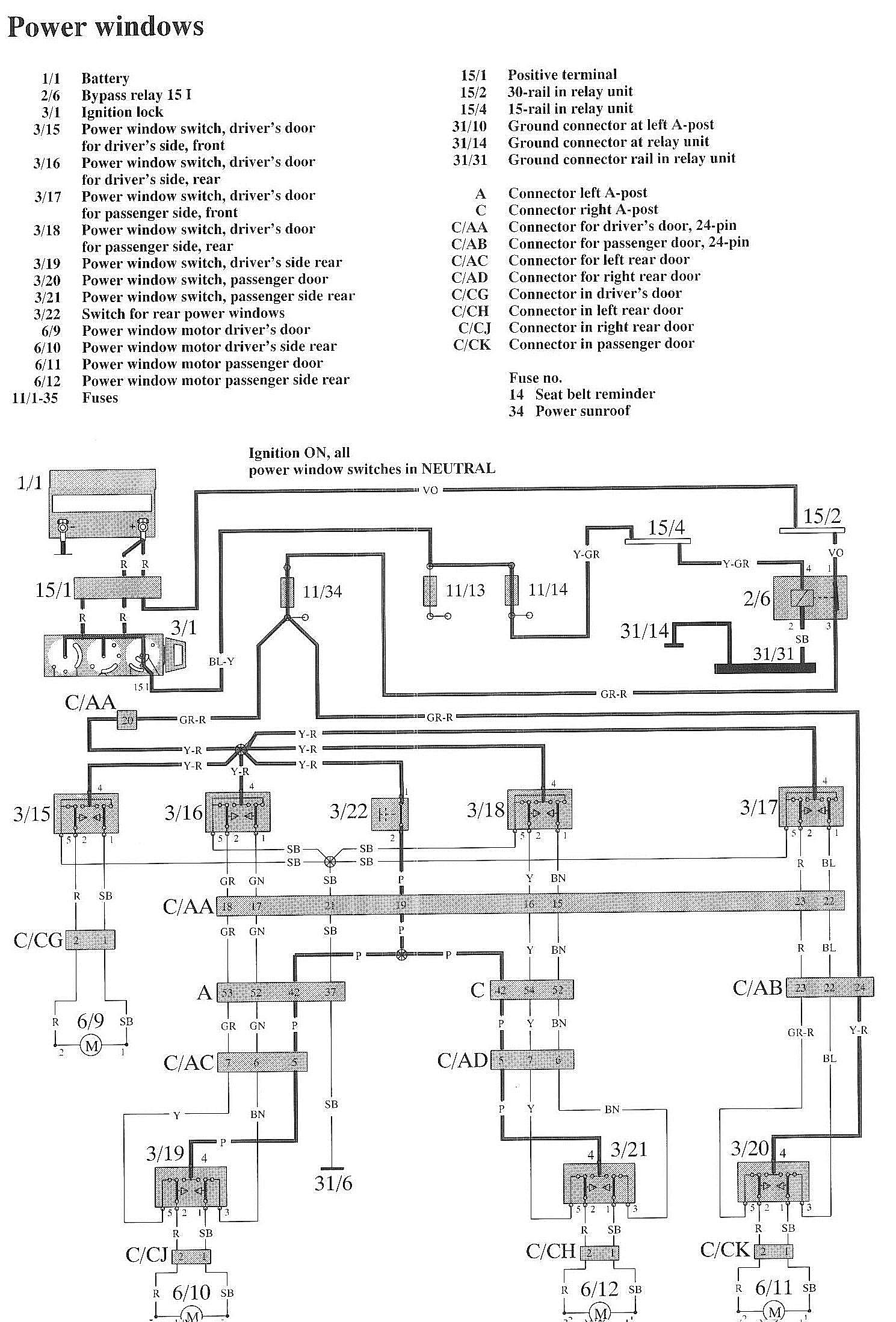

Wiring Diagrams:

LEGEND
1/1 Battery
2/6 Bypass relay 15I
3/1 Ignition lock
3/15 Power window switch, driver's door for driver's side, front
3/16 Power window switch, driver's door for driver's side, rear
3/17 Power window switch, driver's door for passenger side, front
3/18 Power window switch, driver's dour for passenger side, rear
3/19 Power window switch, driver's side rear
3/20 Power window switch, passenger door
3/21 Power window switch, passenger side rear
3/22 Switch for rear power windows
6/9 Power window motor driver's door
6/10 Power window motor driver's side rear
6/11 Power window motor passenger door
6/12 Power window motor passenger side rear

11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
15/4 15-rail in relay unit
31/10 Ground connector at left A-post
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
