Cruise Control Servo: Description and Operation

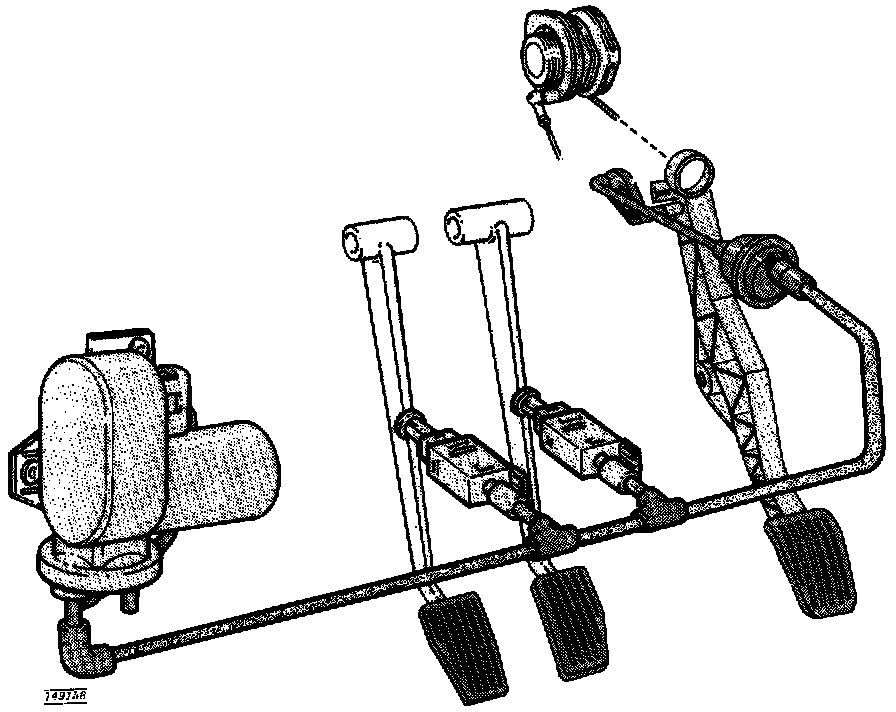

Vacuum servo






Located adjacent to the throttle linkage. It consists of a housing with a bellow which is pulled in towards the housing by vacuum and via the accelerator pedal pulls the throttle linkage wire with it.
