Checking Control Module

CHECKING CONTROL MODULE

If antenna operation is still faulty following above action, control module should finally be checked.

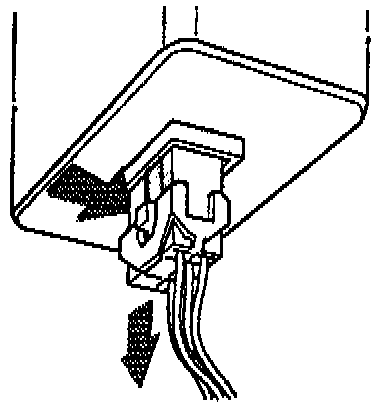

- Disconnect module connector by depressing spring catch and pulling connector downward.

- Check operation of antenna with new control module, p/n 3533347-5.
- Control module must be replaced if faulty.

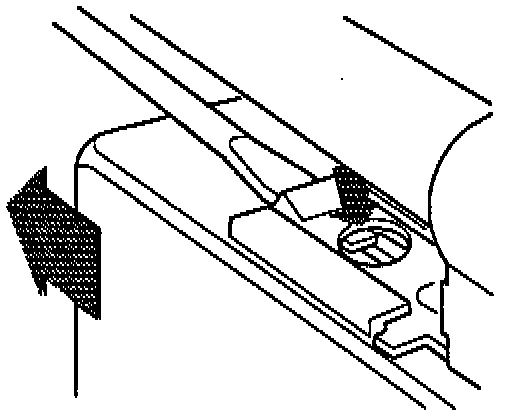

- Free control module from mounting bracket by depressing catch on protective cover with screwdriver.
- Install and connect new control module, ensuring that locking catch is securely engaged.
